PCIe IP Prototyping Kit Installation Guide Setting Up Hardware Components

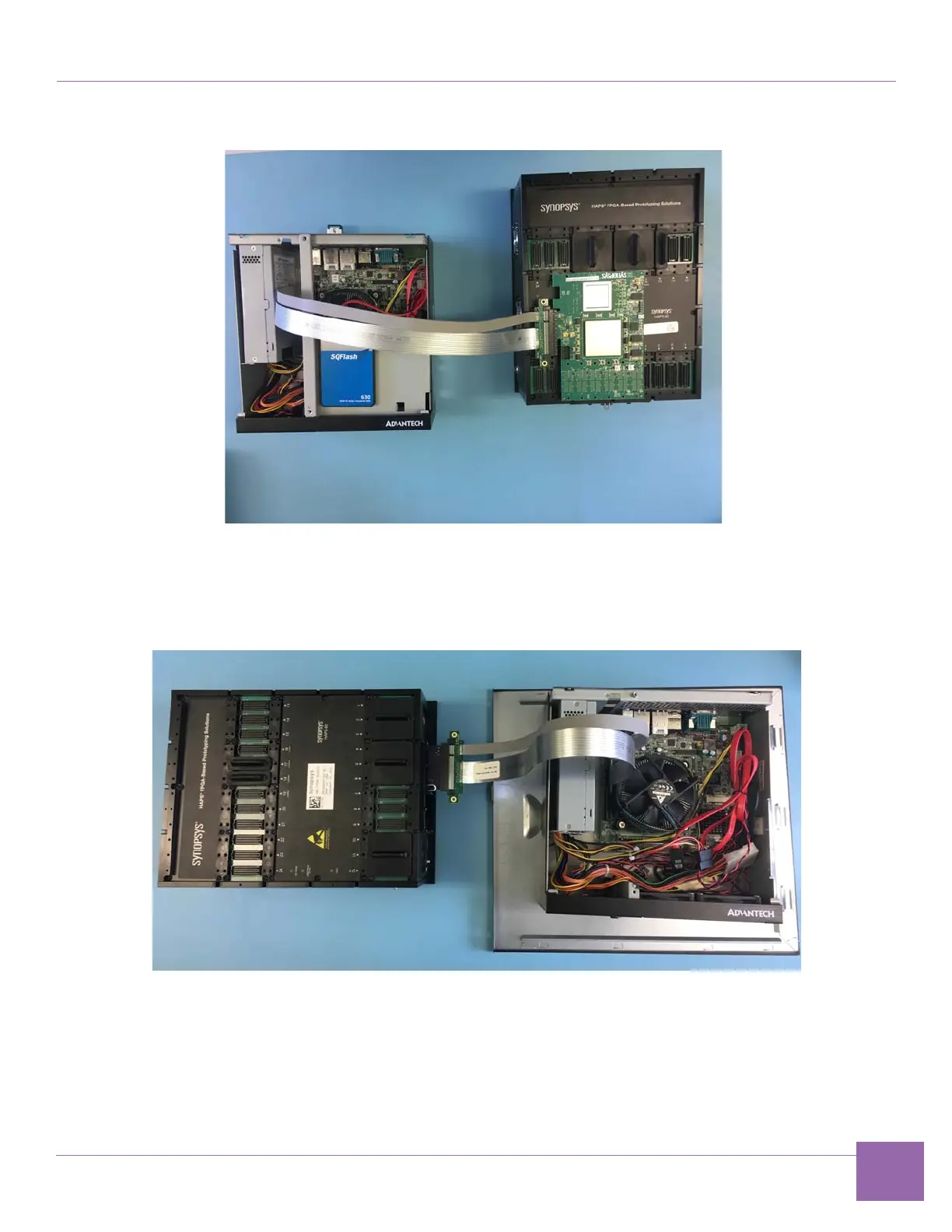

Figure 1-19 PCIe Endpoint IP Prototyping Kit using the E16 PHY
To setup the HAPS-80 board, for the PCIe Endpoint IP Prototyping Kit using Xilinx PHY, refer to
“Setting Up HAPS-80” on page 16
Figure 1-20 PCIe Endpoint IP Prototyping Kit Setup Using the Xilinx PHY
