PCIe IP Prototyping Kit Installation Guide Installing Software Drivers
c. Take note of the USB Serial Port number (for example, COM4 as shown in Figure 3-1).

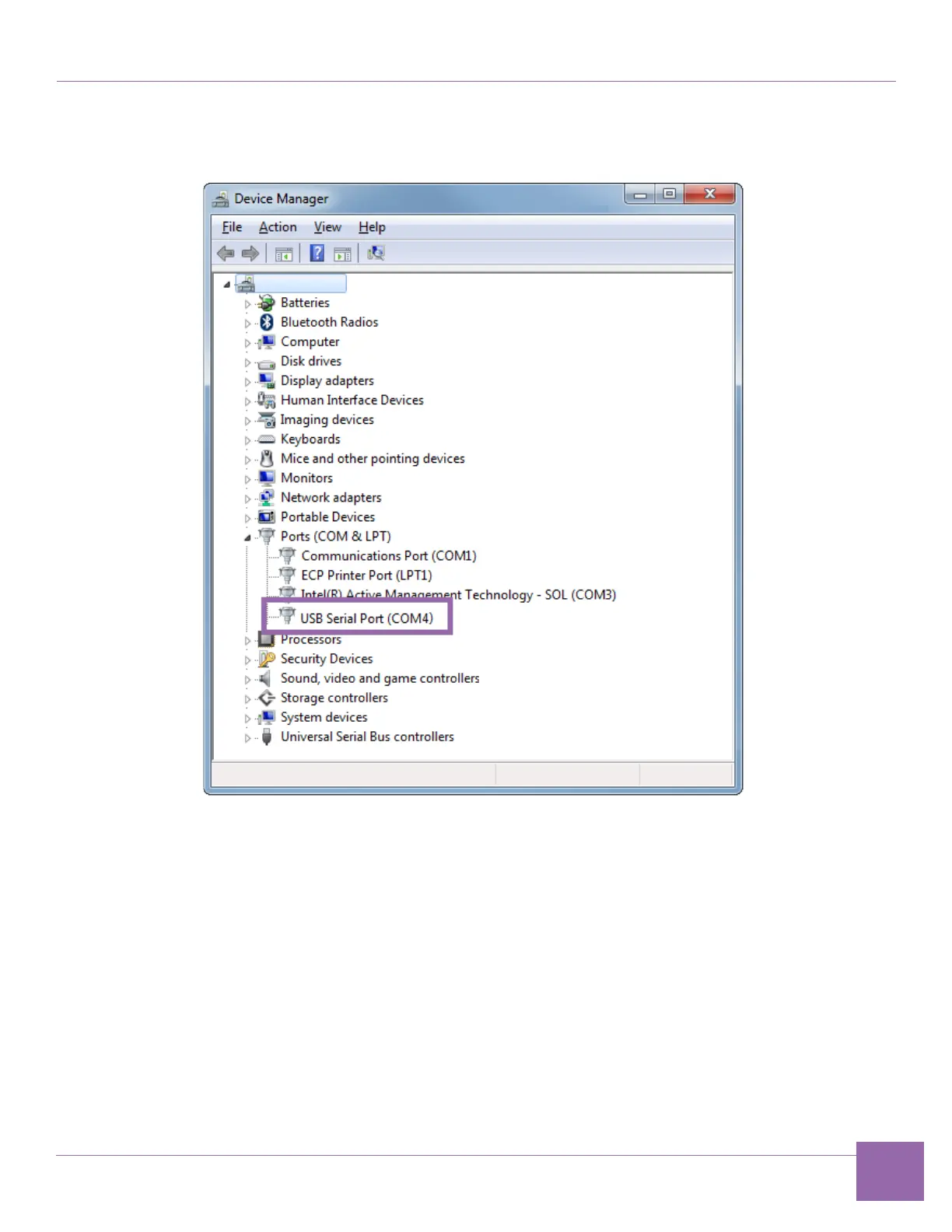

Figure 3-1 Device Manager Window
3. In the PuTTY configuration window, use the following configuration parameters. Before typing the
configuration parameters, change the connection type to “Serial”.
❑
Serial line: Use the USB Serial Port number (COM4 is used in this example)
❑
Speed: 115200
