Synrad p250 - Marking Head Mounting; Notch Orientation for Mounting

9 p250 Laser Quick Start Guide Version 3.1
p250 Quick Start Guide
250

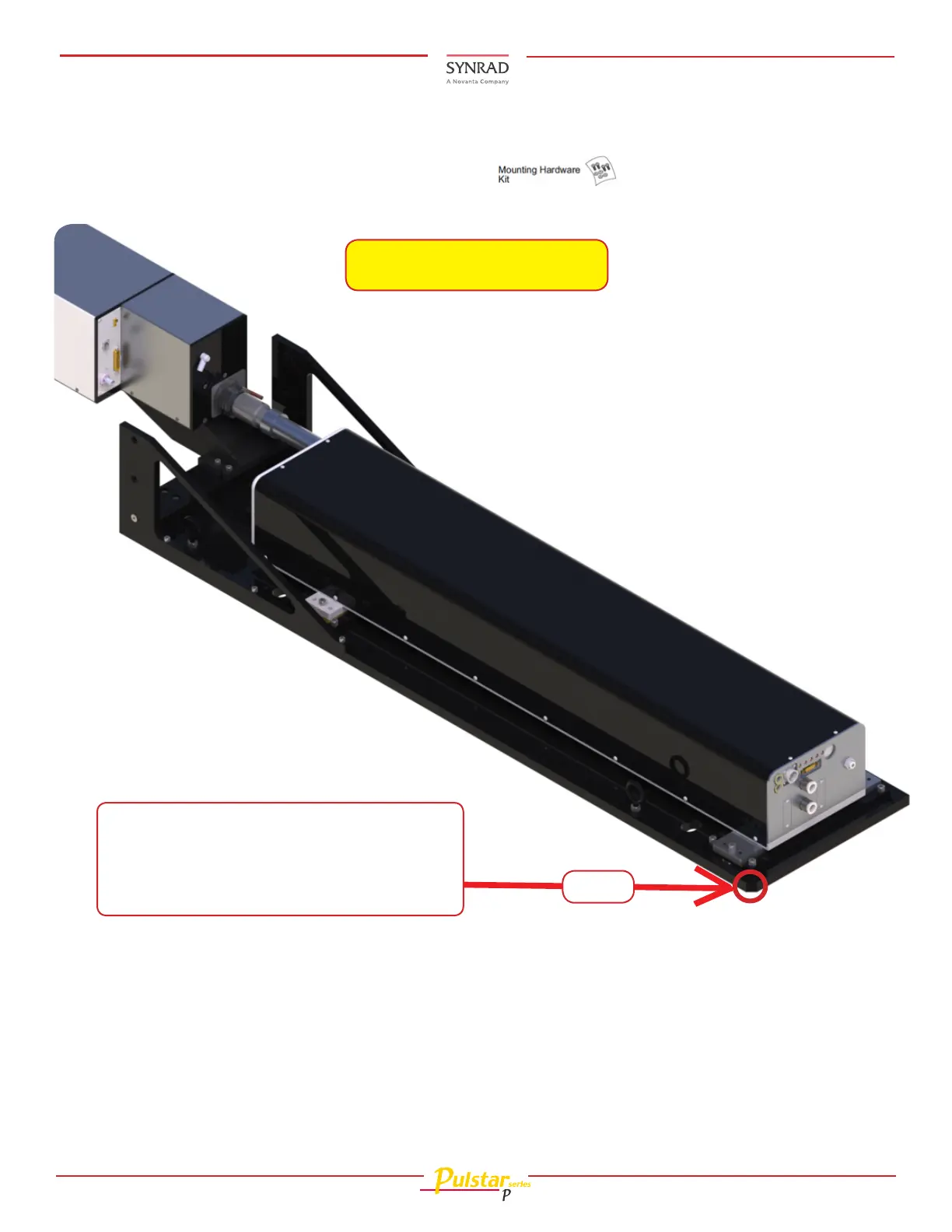

12. The laser should arrive with feet and shims installed, please refer to the gure below for further detail.
13. Locate the marking head Mounting Hardware Kit ( ): Marking Head Safety tube,
clamp, and Allen screws.
Note: Should look like this when
mounting is complete.
Note: Very important! Assure the notch
is facing to the back left of the laser!
Otherwise, re-work required because the
head will be mounted incorrectly.
Notch
Mounting (Continued):
