System Sensor SCWLED User Manual

4 LED L-series Indoor Horn Strobes and Strobes — P/N I56-0022-000 8/25/2023
Configurations for Notification Appliances Available Tones
Section 2: Configurations for Notification Appliances
2.1 Available Tones
System Sensor offers a wide variety of tones for your life safety needs. Temporal 3 pattern is specified by ANSI and NFPA 72 for standard
emergency evacuation signaling: ½ second on, ½ second off, ½ second on, ½ second off, ½ second on, 1½ off, and repeat.
To select the tone, turn the rotary switch on the back of the product to the desired setting. (See Figure 1.)
Available horn settings can be found in Table 1.
2.2 Available Candela Settings
System Sensor offers a wide range of candela settings for your life safety needs. To select your candela output, turn the rotary switch on the
back of the product to the desired candela setting. (See Figure 2.) Table 2 shows available candela options.
The candela setting can be verified from the front of the unit by looking through a small window on the front of the product. (See Figure 19
for window location on device.) All products meet the light output profiles specified in the appropriate UL Standards. (See Figures 3, 4,
and 5.)

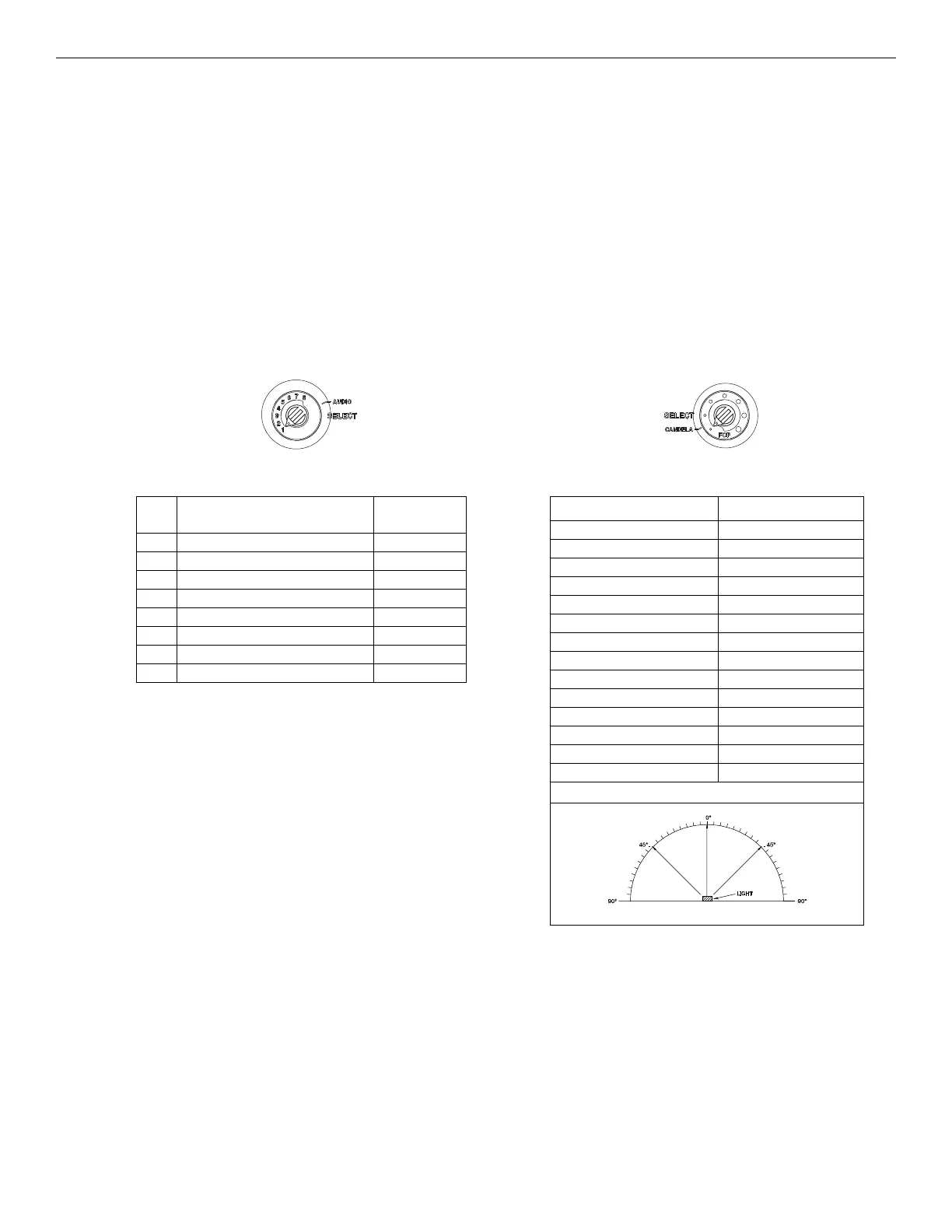

Figure 1 Audio Selector
A0621-00
Figure 2 Candela Selector
A0622-00
Table 1 Horn Tones Figure 3 Light Output –Horizontal Dispersion
Pos Tone
Volume
Setting
1 Temporal 3 High
2 Temporal 3 Low
3 Non-Temporal High
4 Non-Temporal Low
5 3.1 KHz Temporal 3 High
6 3.1 KHz Temporal 3 Low
7 3.1 KHz Non-Temporal High
8 3.1 KHz Non-Temporal Low
Degrees* Percent of Rating
0100
5-25 90
30-45 75
50 55
55 45
60 40
65 35
70 35
75 30
80 30
85 25
90 25
Compound 45 to the left 24
Compound 45 to the right 24
*Tolerance of ±1 degree is permitted.
A0467-00
