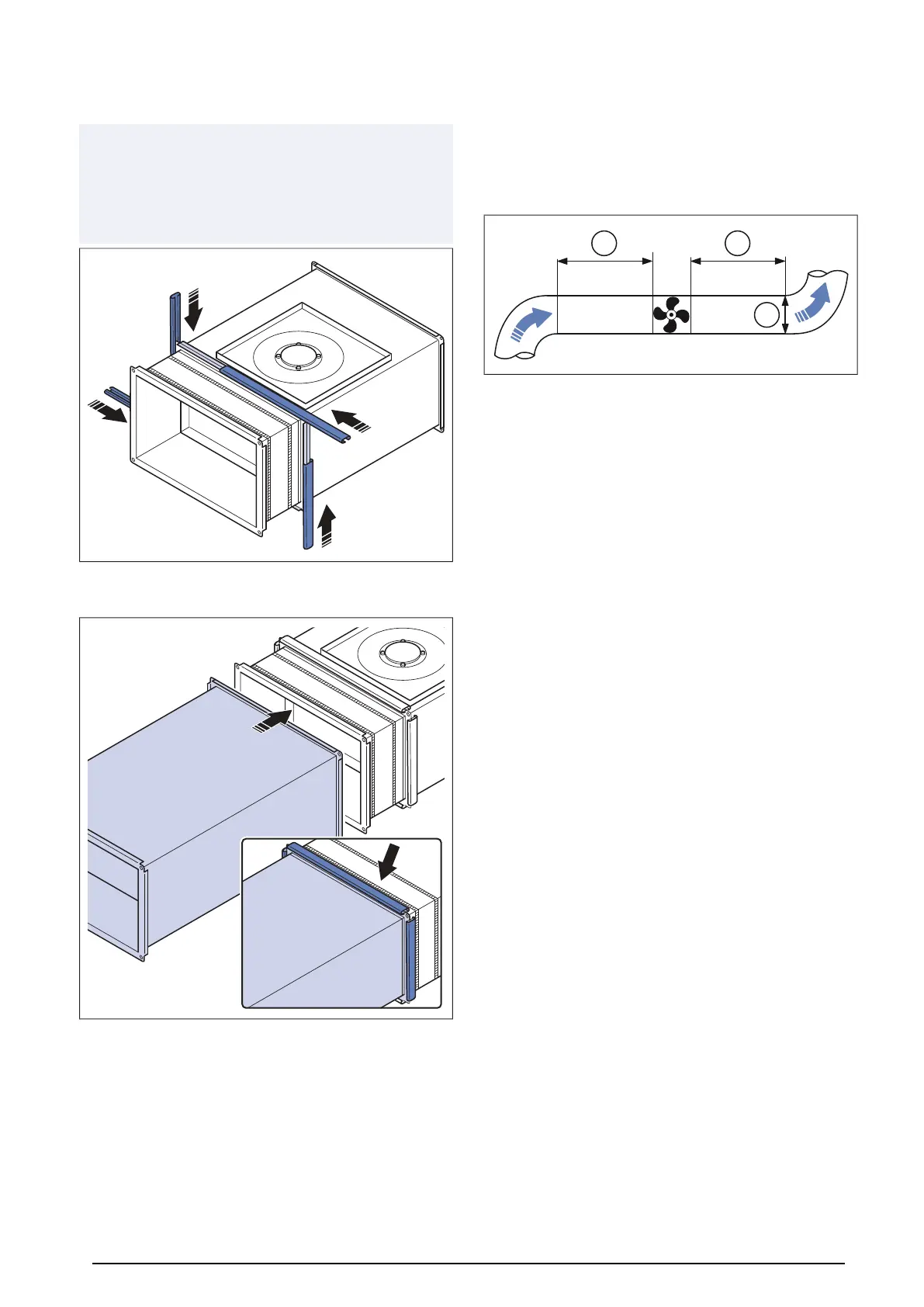

1 If applicable, put flexible connections on each side of the
product and use guide rails to connect the product and
the flexible connections. Guide rails are not supplied by
Systemair.
Note:
Installation example is only a guide for installation. The di-
mensioning of suspension devices must be carried by the
installer and adapted to the prevailing conditions. Installa-
tion components mentioned in the text are accessories
and not part of the ATEX certification.
2 Put the ducts on each side of the product and the at-
tached flexible connections. Use guide rails to attach the
flexible connections to the ducts.
3 If you install the product near a duct bend, do these
steps to prevent vibrations, unwanted noise and de-
creased air pressure:
a. Measure the distance (A) between the product and
the duct bend.
b. Make sure that the distance (A) is a minimum of 2.5
x the diameter (B) of the duct system. For circular
ducts, (B) is the nominal diameter. For rectangular
ducts, (B) is the hydraulic diameter.
8
