SystemAir DVG EC F400 - Technical Data Overview; Product Dimensions; Product Dimensions for DVG

13
13 Technical data
13.1 Technical data overview
Electrical data
Refer to the name plate� Refer to 1�5 Name plate page 2 for more
information�
Other data
Refer to the data sheet in the online catalogue at www�systemair�com�
13.2 Product dimensions

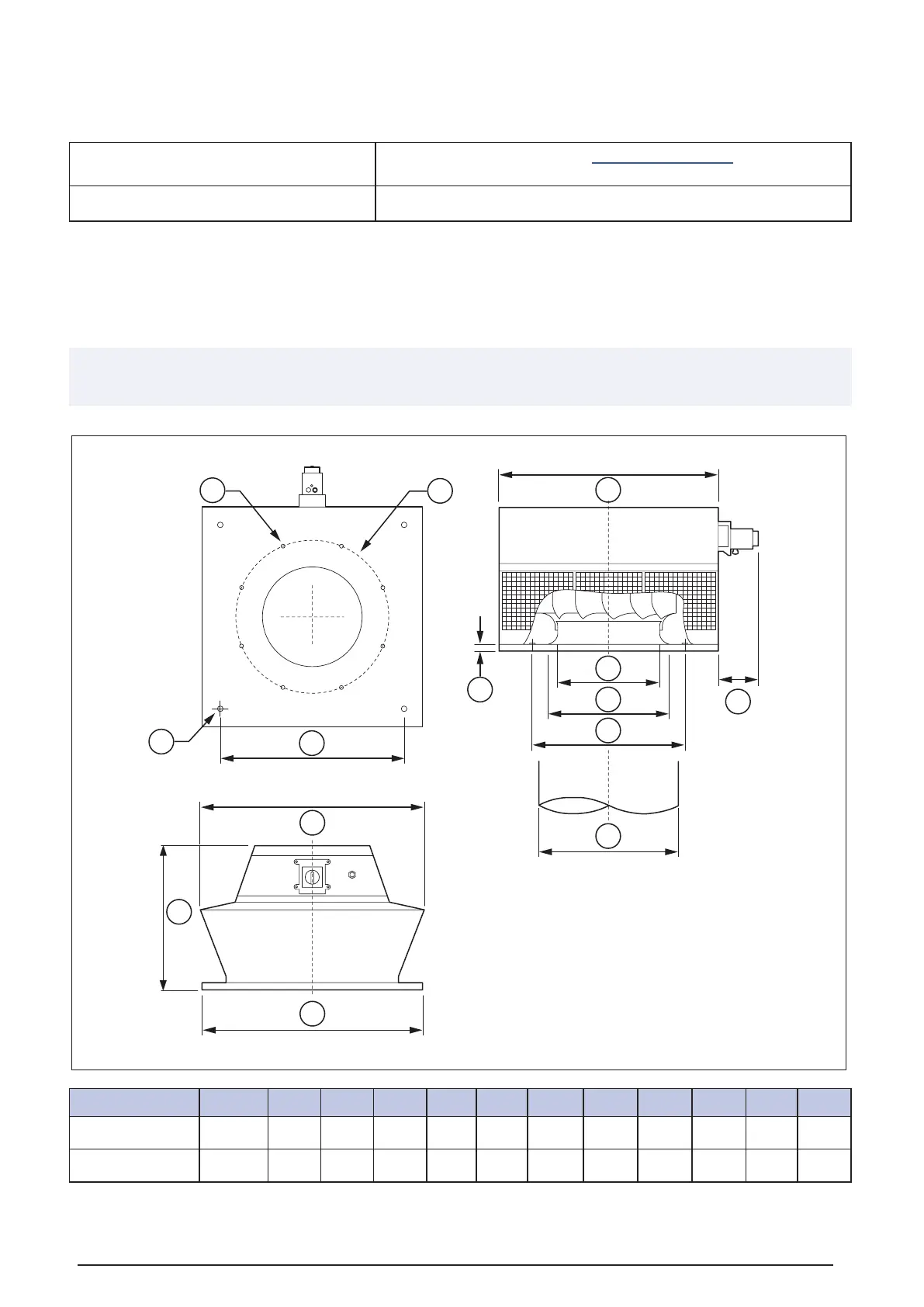

13.2.1 Product dimensions for DVG-H
Note:
Iftheunitofmeasureisnotspecied,thedimensionsaregiveninmillimetres.
B
B
A
C
D
J
E
F
G
H
B
I
K
F
L
ØA ØB ØC D E F ØG ØH ØI ØJ K L
DVG-H 355 6XM8 438 12 450 30 598 224 310 400 240 708 486
DVG-H 450 6XM8 438 12 535 30 668 286 379 400 240 857 541
