6.5.3 Fitting the kitchen furniture panel as a door

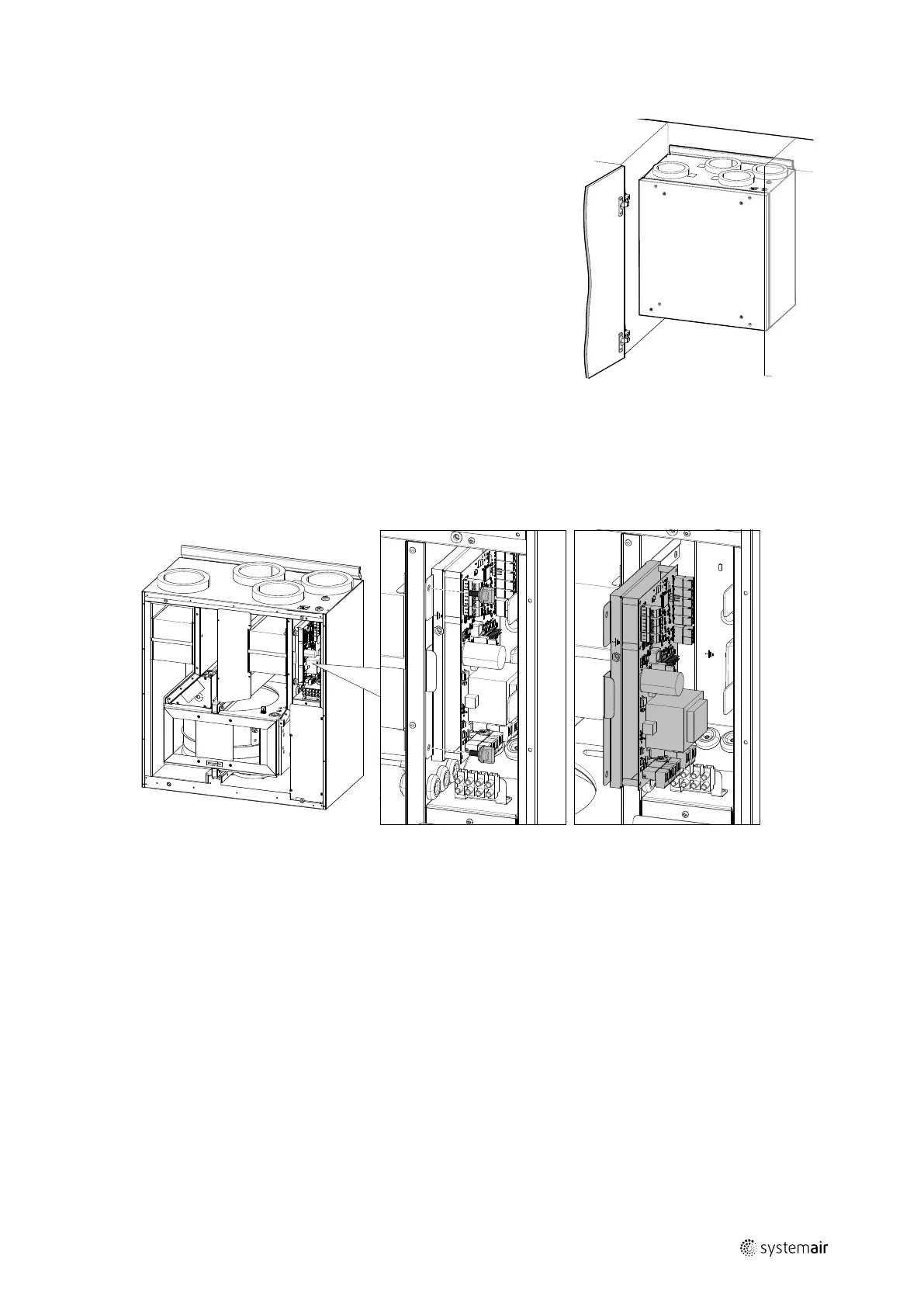

Fig. 21 Kitchen furniture panel as a door
Another suggested option is to use hinges instead of brackets and install the
kitchen furniture panel as a hinged cupboard door. Hinges or other needed
parts for this installation method are not included in the package.
7 Electrical connections
The SAVE–P VTR 150/B is wired internally from factory.
The electrical connection box can be found on the exhaust air outlet side of the unit. The print card can easily be taken
out from the unit, without using tools.
Fig. 22 Main circuit board position
7.1 Main circuit board layout
The SAVE–P VTR 150/B is equipped with built-in regulation and internal wiring.
