Prerequisites for Installation |
5
Checking delivery
• Check the packaging and the air handling unit for transport damage. Any findings should be noted on the cargo
manifest.
• Check completeness of the delivery.
Verify that all ordered equipment is delivered before starting the installation. Any discrepancies from the ordered
equipment must be reported to the supplier of Systemair products.
Warning
When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters
etc.
Unpacking
• Check the air handling unit for visible transport damage.
• Only remove the packaging shortly before assembly.
• Beware of sharp edges during mounting and maintenance. Use protective gloves.
5 Prerequisites for Installation
To ensure a proper and fail-free operation, it is important that the unit is installed according to these instructions.
5.1 Location and Space Requirements
The SAVE–P VTR 150/B is to be mounted above a stove.
Continue to follow instructions how to find the correct height and depth for mounting bracket installation.

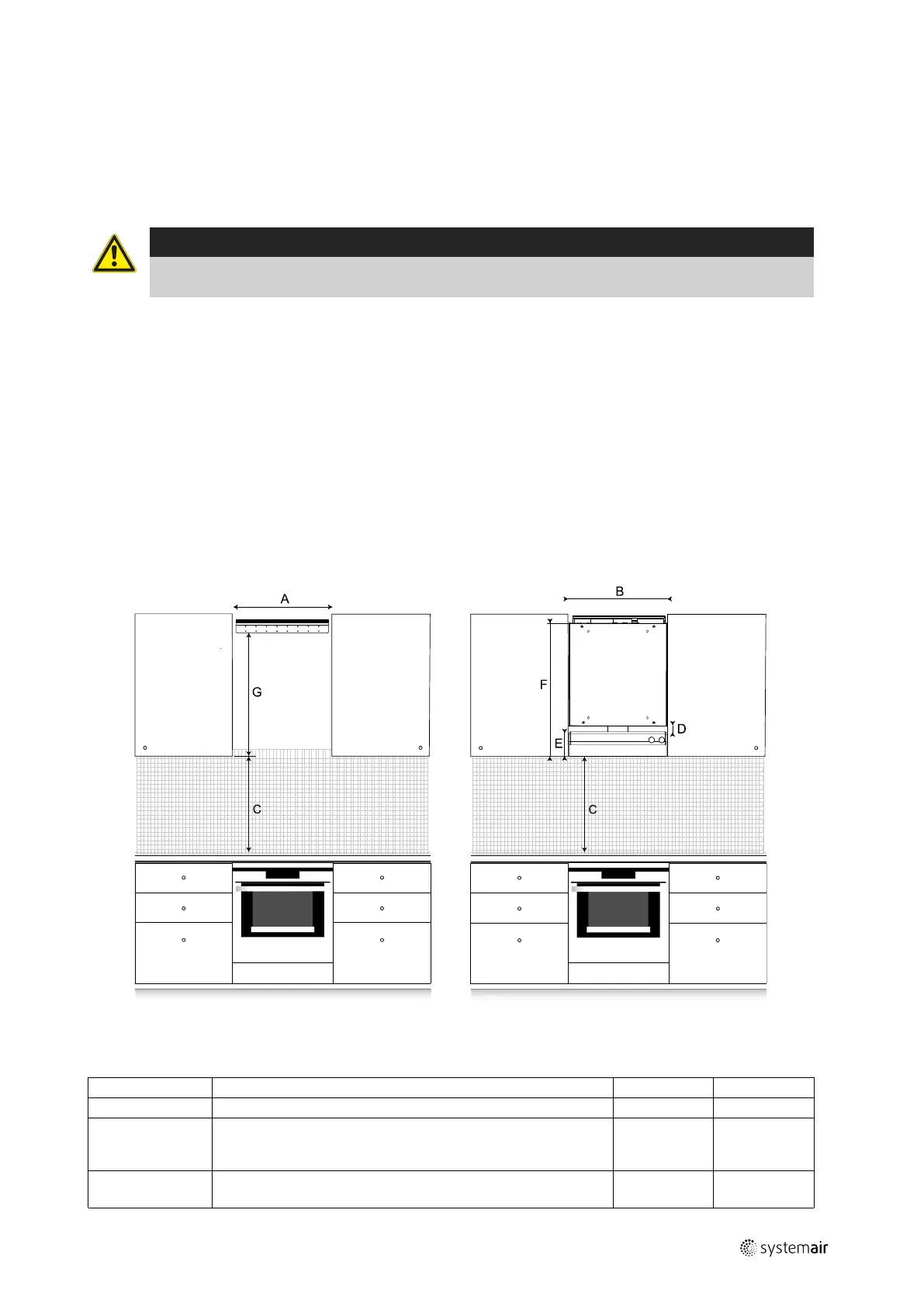

Fig. 4 SAVE–P VTR 150/B in a kitchen environment
251-10/B 392–10/B
A
Minimum distance between cabinets (mm)
600 600
B
SAVE–P VTR 150/B unit width (mm)
596 596
C, Electrical stove Minimum distance between stove surface and cooker hood
(mm)
450
(Recommen-
ded 500)
450
(Recommen-
ded 500)
C, Gas stove
Minimum distance between stove surface and cooker hood
(mm)
650 650
271401 | v1
