SystemAir SYSCOIL COMFORT 10 User Manual

220
15 123 12
50
15
I
15
G
192
E
F
D
C
B A
100 H
G
Wa ll
Return
Discharge
15 184 21
16
I
16
VI SYSCOIL COMFORT
APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO

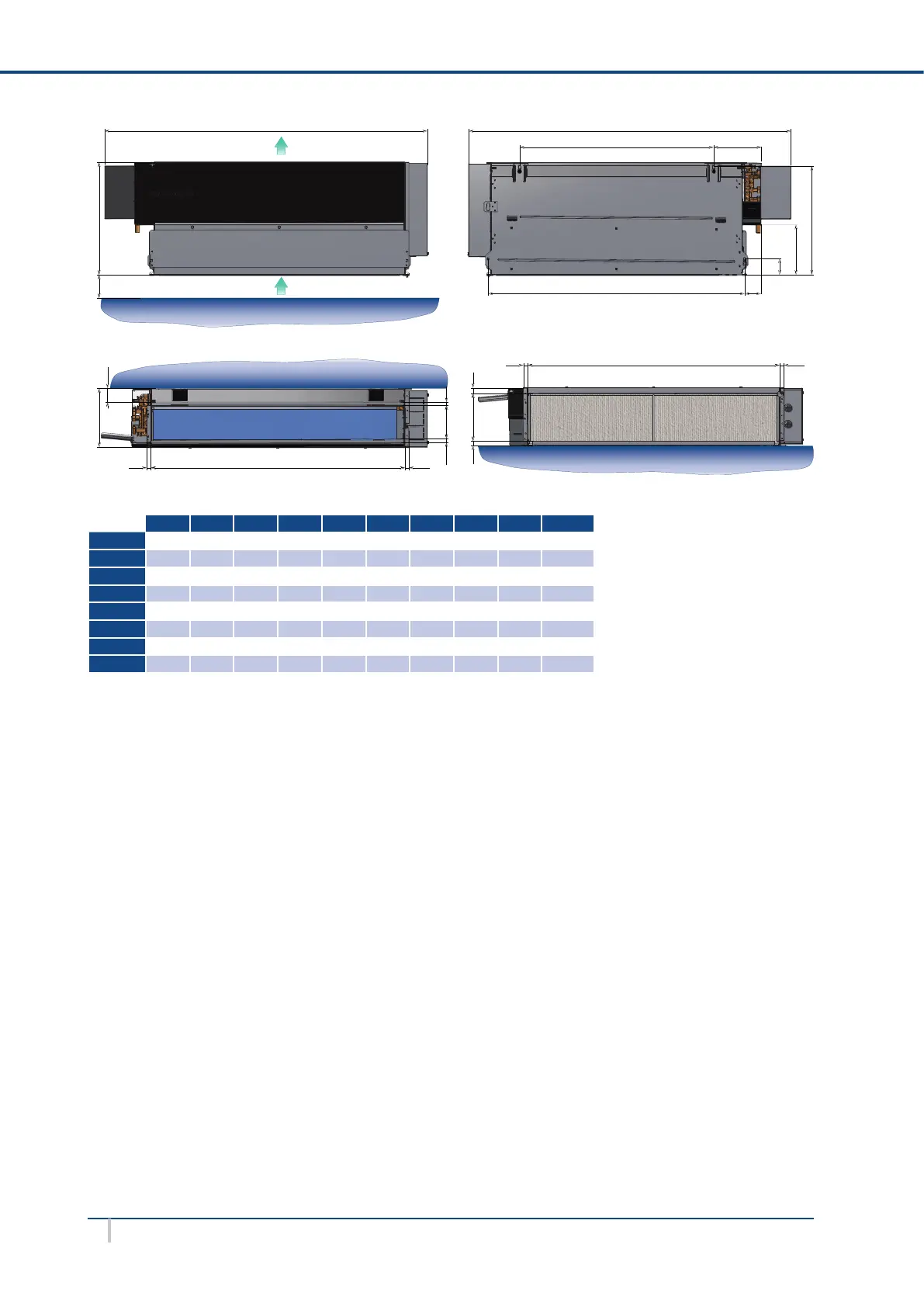

SYSCOIL COMFORT HN WITH DRAIN GUARD
Dimensions are in millimeters
A B C D E F G H I Weight
SCC10
66.5 428 185.5 189 415.5 61 692.5 430 407 14
SCC20
66.5 428 185.5 189 415.5 61 692.5 430 407 14
SCC30
64 613 184 374 415.5 61 876 430 592 16
SCC40
64 798 184 559 415.5 61 1 061 430 777 22
SCC50
63 983 183 744 415.5 61 1 245 430 962 24
SCC60
63 1 168 183 929 415.5 61 1 430 430 1 147 28
SCC70
63 983 195 744 519 88 1 244 530 962 29
SCC80
69 1 168 195 929 519 86 1 439 530 1 147 40
