SystemAir SYSCROLL AIR CO/HP 40-75

14

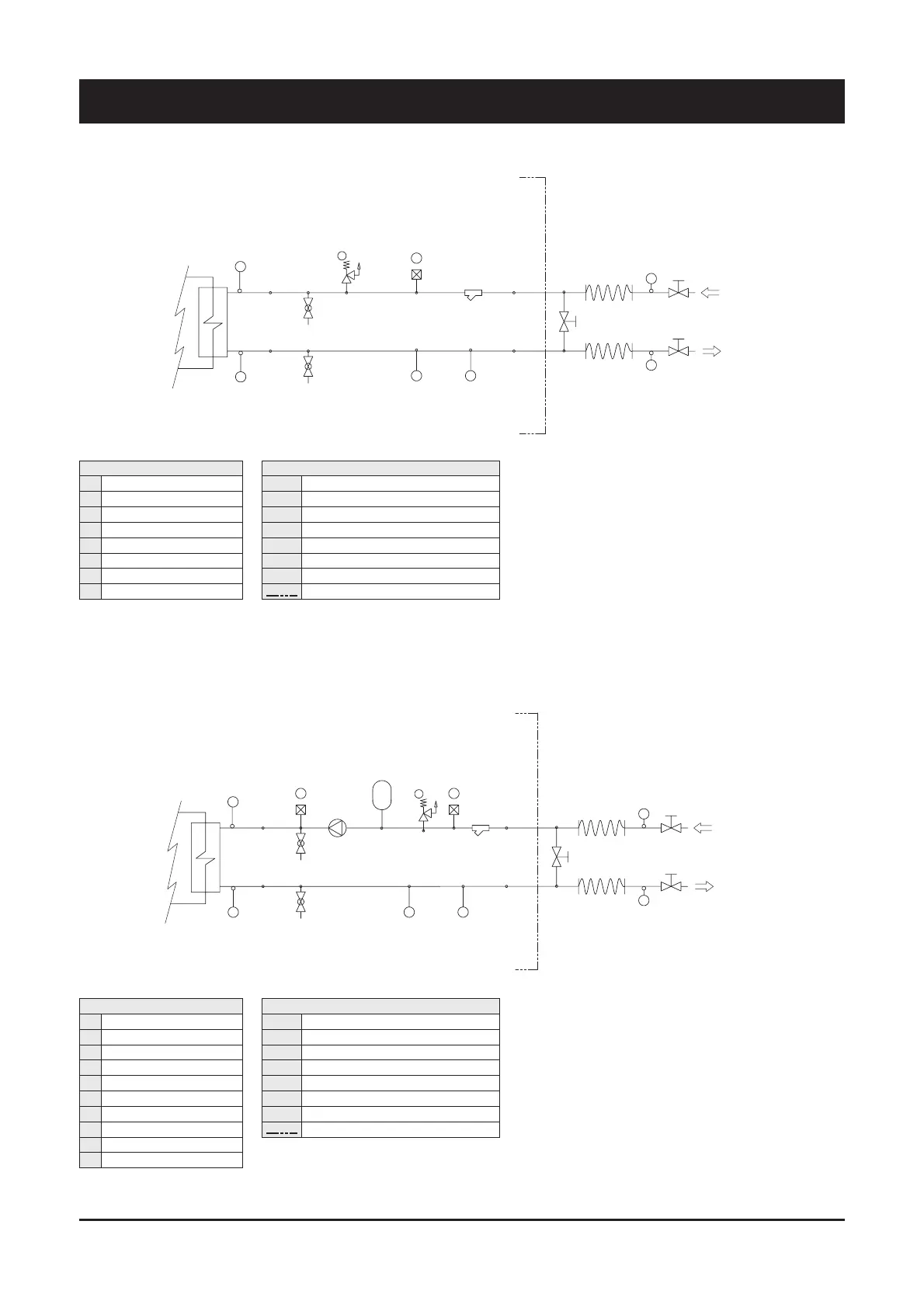

External water circuit - Basic Unit
4 - Installation
1
B
A
10
5
G
G
9
11
11
12
12
13
INLET
OUTLET
FS I
8
E
D
8
COMPONENTS
1 Plate heat exchanger
5 Water filter
8 Pressure point/drain valve
9 Water outlet
10 Water inlet
11 Globe valve
12 Flexible pipes
13 By-pass valve
SAFETY/CONTROL DEVICES
A Inlet water temperature sensor
B Outlet water temperature sensor
D Vent valve (105 mbar)
E Water safety valve (3 bar)
FS Flow switch
G Thermometer
I Hydrometer
Unit side
External water circuit - 1 Pump
8
D
2
E
8
I FS
OUTLET
INLET
13
12
12
11
11
9
G
G
5
10
A
B
1
7
D
COMPONENTS
1 Plate heat exchanger
2 Pump
5 Water filter
7 Pressure expansion tank
8 Pressure point/drain valve
9 Water outlet
10 Water inlet
11 Globe valve
12 Flexible pipes
13 By-pass valve
SAFETY/CONTROL DEVICES
A Inlet water temperature sensor
B Outlet water temperature sensor
D Vent valve (105 mbar)
E Water safety valve (3 bar)
FS Flow switch
G Thermometer
I Hydrometer
Unit side
