t.a.c. Satchwell Climatronic CSC5352 - Basic Wiring Diagrams for Compensated Valve Control

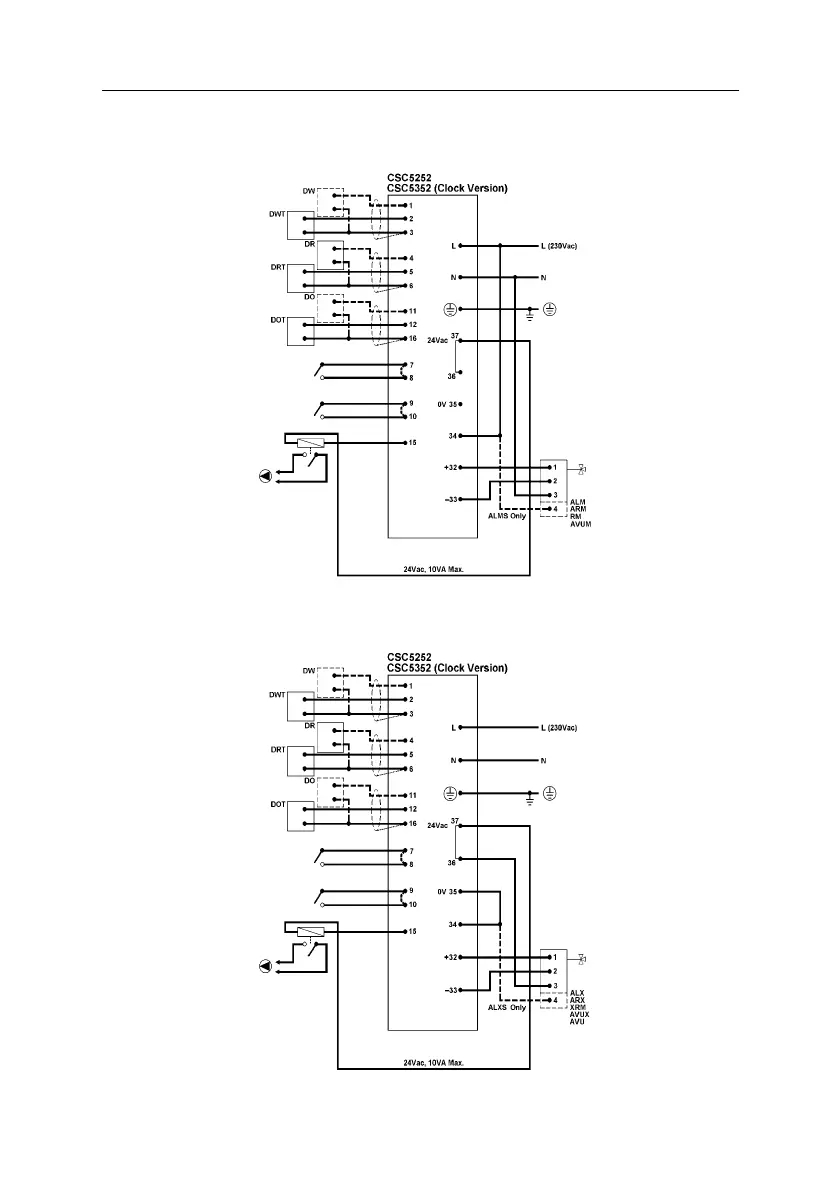

3.1.1. Basic Wiring Diagrams for Compensated Valve Control
Ensure that 34 is
always hard wired to
35, for all 24Vac
actuators only
Links 7-8 and/or 9-10 must
be removed if Set-up
and/or Night Set Back is
used.
Set-Up/Boost
Night Set-Back
Pump
Time-switch
version only
230Vac Actuator
ARM Mk 2 Actuator
1 = Red
2 = Blue
3 = Black
Links 7-8 and/or 9-10 must
be removed if Set-up
and/or Night Set Back is
used.
Set-Up/Boost
Night Set-Back
Pump
Time-switch
version only
24Vac Actuator
Fig.2
Fig.3
ARX Mk 2 Actuator
1 = Red
2 = Blue
3 = Black
CSC USER GUIDE October, 03
13 of 42
