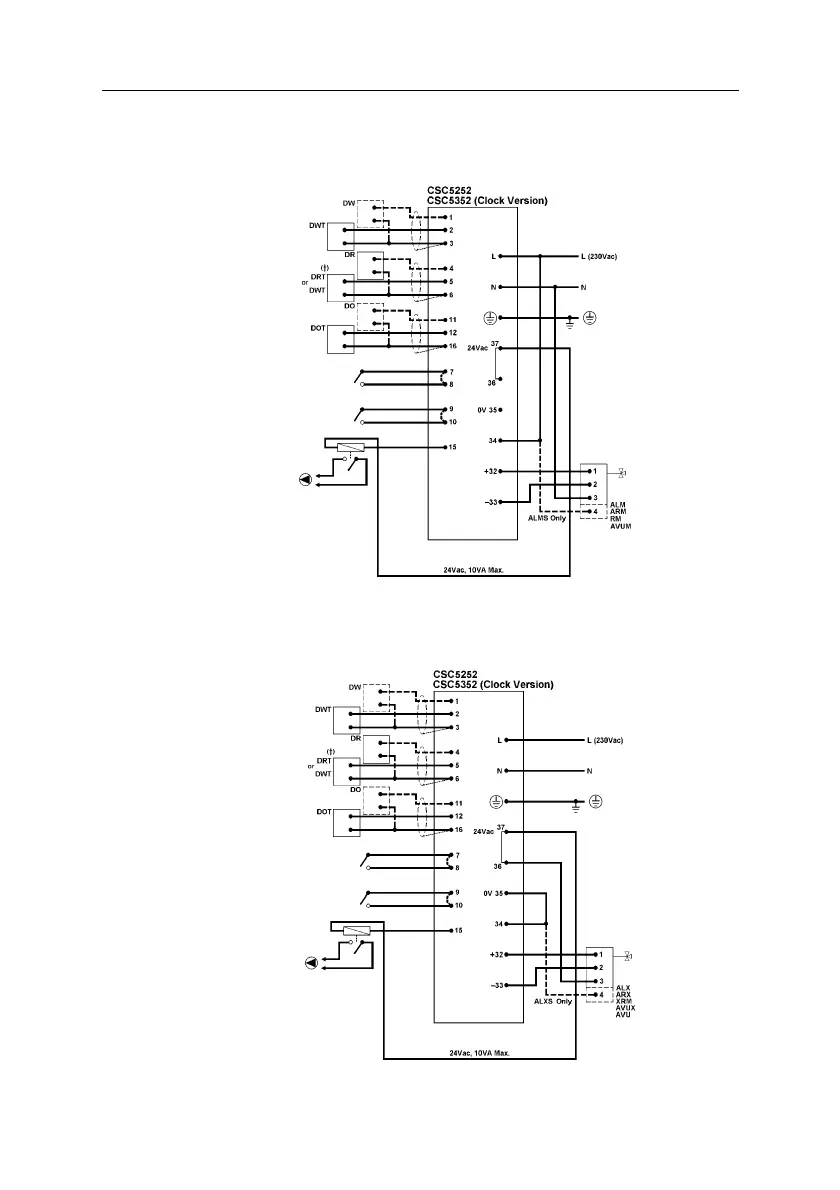

3.3.1. Basic Wiring Diagram for District Heating Applications
Fig.8
Fig.9
Ensure that 34
is always hard
wired to 35, for
all 24Vac
actuators only
Links 7-8 and/or 9-10 must
be removed if Set-up
and/or Night Set Back is
used.
Set-Up/Boost
Night Set-Back
Pump (Clock
Version only)
230Vac Boiler Output
Links 7-8 and/or 9-10 must
be removed if Set-up
and/or Night Set Back is
used.
Set-Up/Boost
Night Set-Back
Pump (Clock
Version only)
24Vac Boiler Output
October, 03 CSC USER GUIDE
18 of 42
