† Room Influence or Max. Return Sensor.
Not both. Max. Return Sensor used for
controlling primary water temperature in
Scandinavian Public Systems.
Pump
Time switch
version only
(Optional)
(Flow
Temp)
Boiler

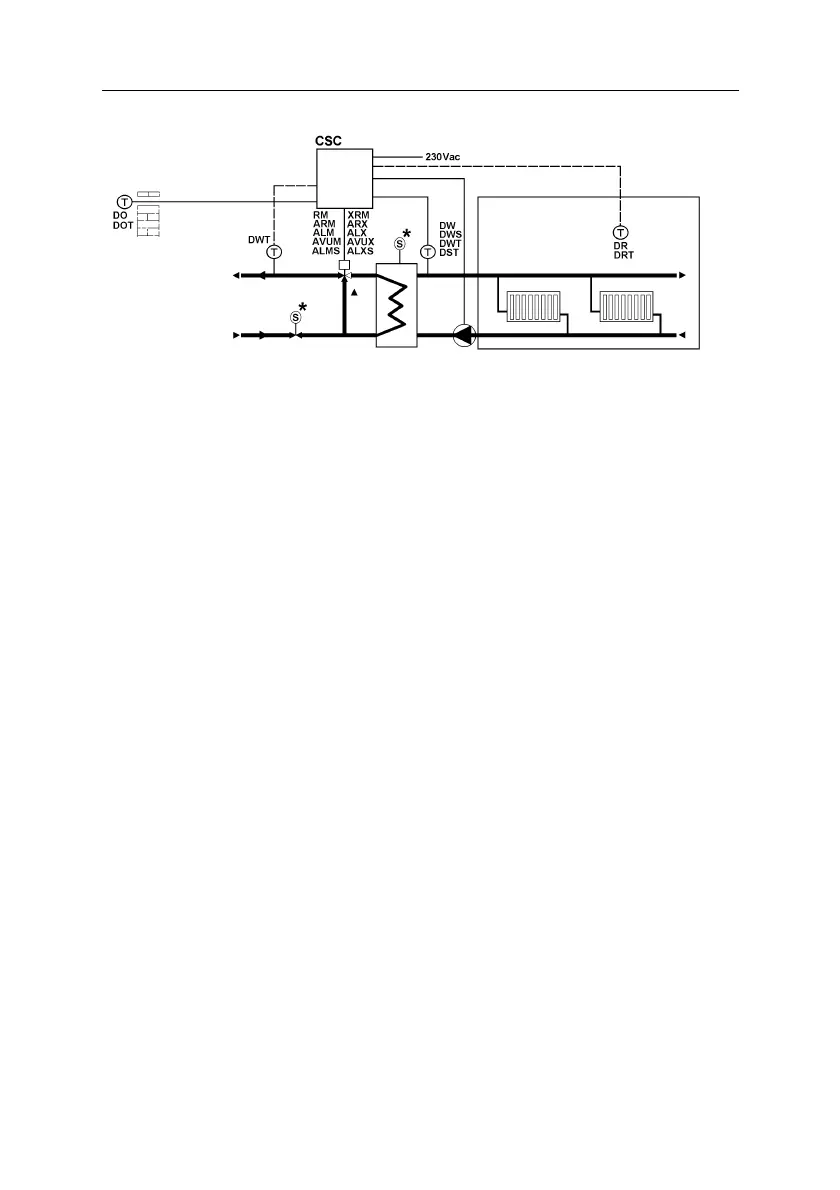

Fig.7
* A safety high
thermostat may need
to be used on the
secondary side to
operate the safety
valve.
†
(Optional)
†
CSC USER GUIDE October, 03
17 of 42
