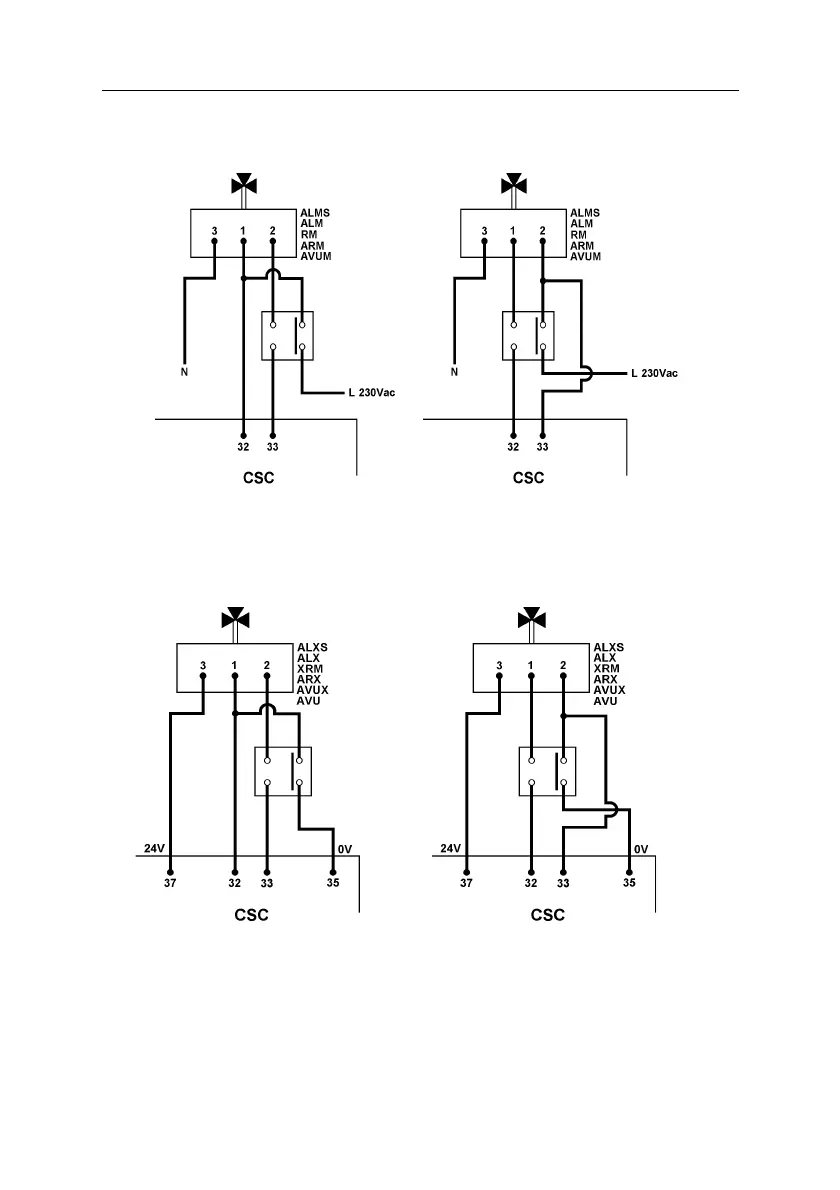

3.4. ACTUATOR OVERRIDE FOR MAINS OUTPUT APPLICATIONS
3.5. ACTUATOR OVERRIDE FOR 24VAC OUTPUT APPLICATIONS
When upgrading an old CSC or
CSC this method reproduces the
4-5 link override that was used.
Override Open Override Close
Single pole relay
or contact
Single pole relay
or contact
Fig.10
Open
Close
Open
Close
When upgrading an old CSC or
CSC this method reproduces the
4-5 link override that was used.
Override Open Override Close
Single pole relay
or contact
Single pole relay
or contact
Fig.11
Open
Close
Open
Close
CSC USER GUIDE October, 03
19 of 42
