t.a.c. TAC 200 User Manual

TAC AB, Feb 2000
2:5
General
TAC 200 User’s Manual
TAC 200 List of functions and example on the use of the operating keys.
2.3 The Operator Panel
The Operator panel consists of a semi-graphic display, a leaflet with the
functions and the following operating keys
P
– upward in list (in the text also called P
up
)
P
– downward in list (in the text also called p
down
)
+
– increase value
–
– decrease value
0/ l
– toggle switch for the 30 minutes segments

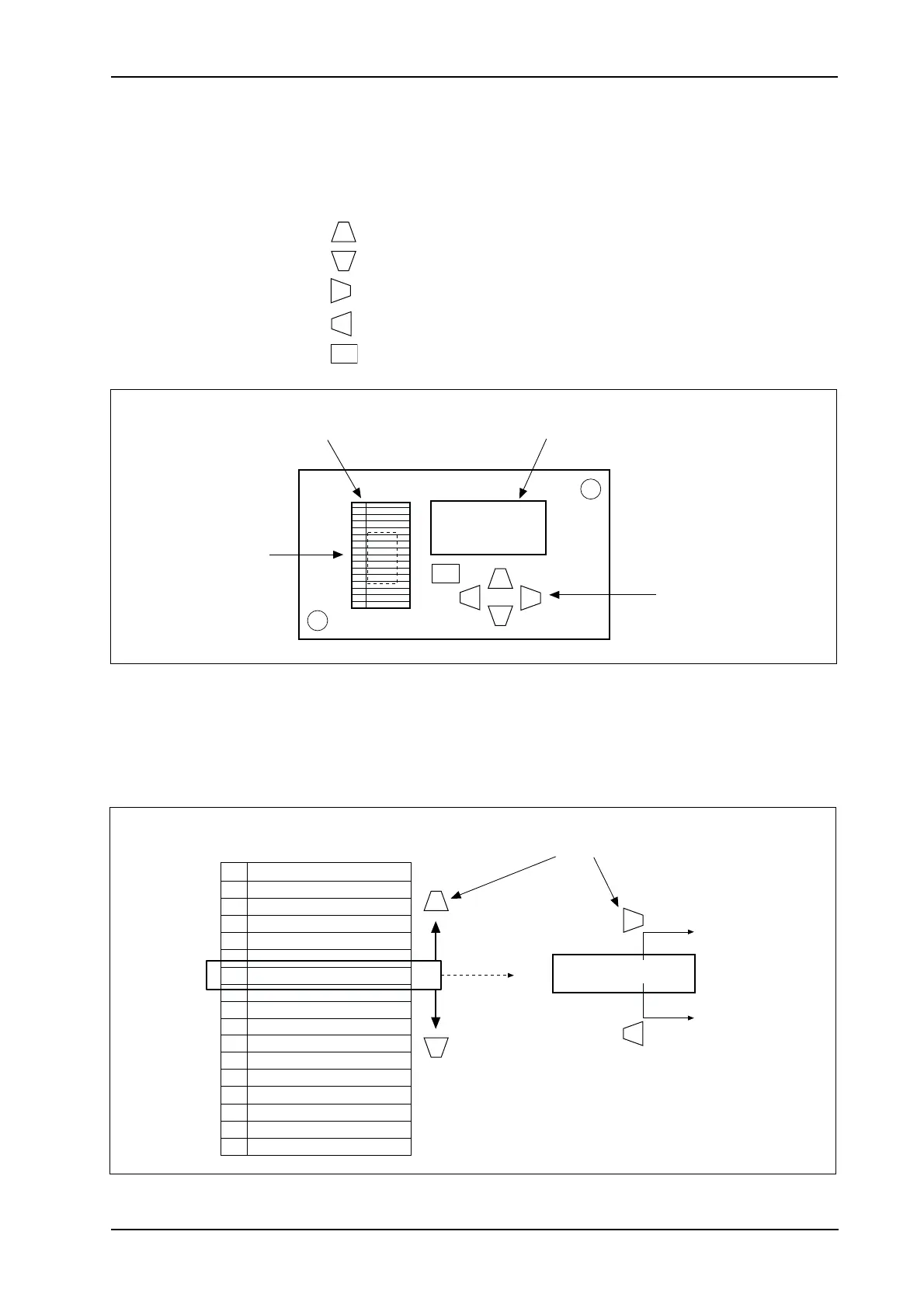

TAC 200 Operator panel.
The keys P
up
and P
down
are used to move up or down in the list of func-
tions, and the keys + and – (and in some cases 0/I) are used to change the
value of the selected item.
P:00 12:34
0/ l
–
P
+
P
Display. Normally showing
P:00 followed by the time.
Operating keys
List of
functions
DIP-switch
location
P:05 20.0 °C
–
P
+
P
Operating keys
List of functions
Display
P:
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Function
Time / Mode
Room temperature
Outdoor temprature
Supply temperature
Calc. supply temp. SP
SetPoint room, day
SetPoint room, night
Night setback SP (°C)
Curve parallel adjustm.
Time pr 1, day-by-day
Time pr 1, 1-7 days
Time pr 2, day-by-day
Time pr 2, 1-7 days
Clock hh:mm
Month.day
Year
20.1
19.9
