Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 23
2 Rev. B Chiller Panels can be installed on either side of the ACS unit. Select the side on which you want
to install the panel. On this side, remove and replace the (4) Phillips head screws with the (4) standoffs,
hand tightening them one at a time.

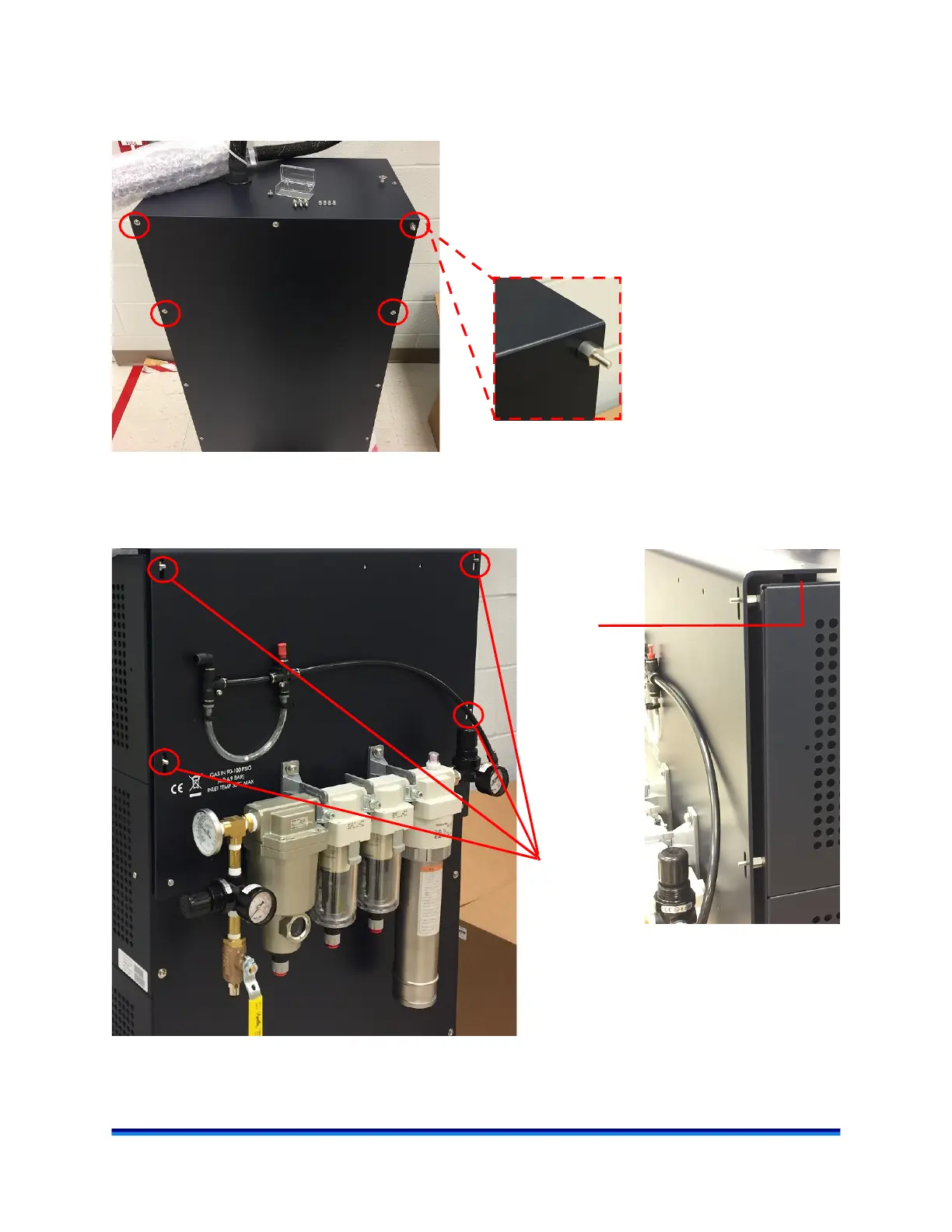

Figure 11 Remove Phillips head screws and replace with standoffs.
3 Position the panel onto the ACS unit and slide the panel over the (4) standoffs installed in the previous
step. The magnets installed at the bottom of the panel will hold it temporarily in place.
Figure 12 Position the panel.
Remove and replace
Magnet
(4) Standoffs
