TA Instruments DMA 850 - Upgraded Combined Panel; Final Configuration of Upgraded Panel

Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 41
The panel is now upgraded to a Combined DHR/DMA Air Chiller Panel (P/N 405400.901 Rev. B; see
Figure 37
); it allows the ACS to be used on a DMA following the ACS for DMA Getting Started Guide or
on a DHR following the ACS for DHR Getting Started Guide. Follow instructions for Combined DHR/
DMA Air Chiller Panel.

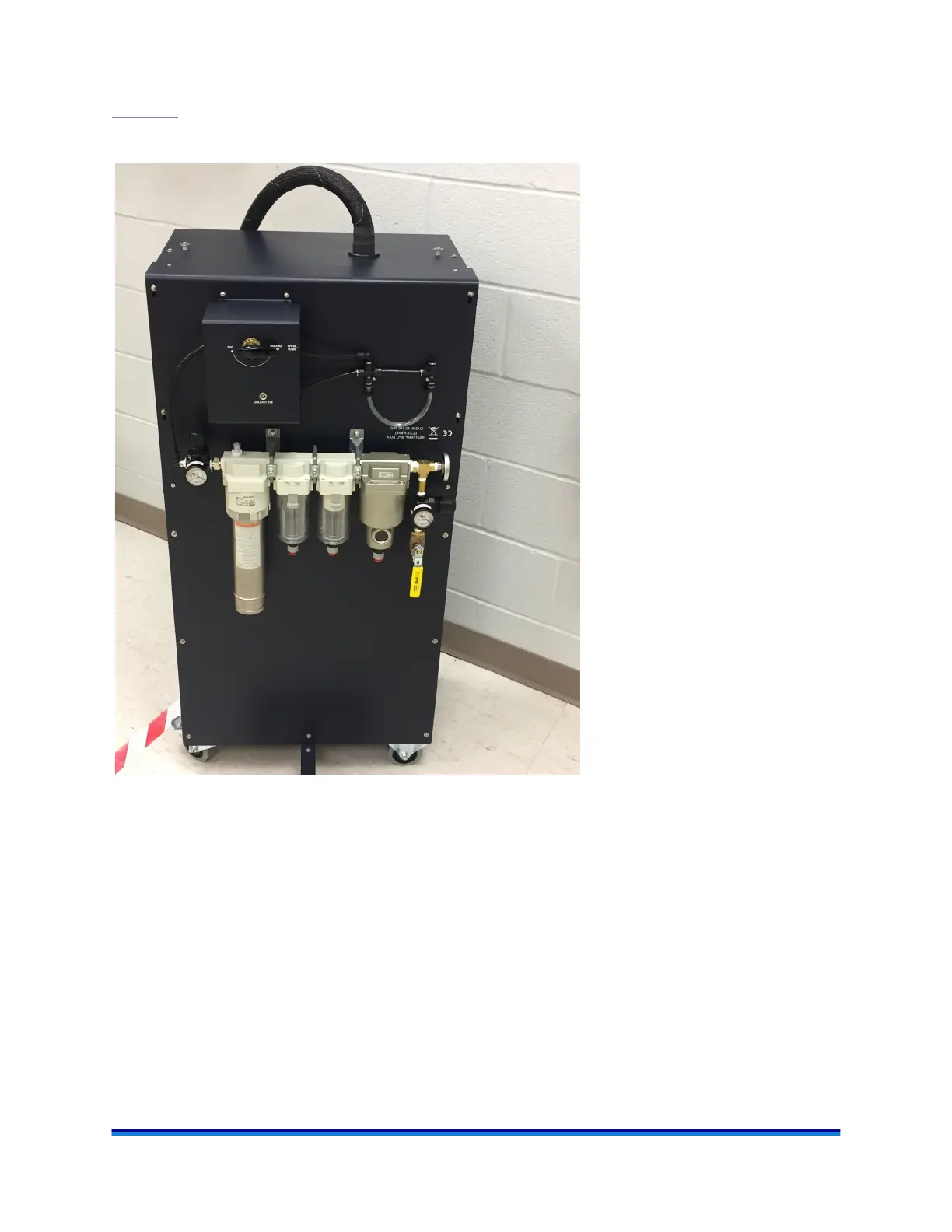

Figure 37 Upgraded Combined DHR/DMA Air Chiller Panel (P/N 405400.901 new design)
NOTE: The remaining items in the Combined ACS Panel Upgrade Kit are used with the DHR only.
Instructions are in the ACS for DHR Getting Started Guide.
