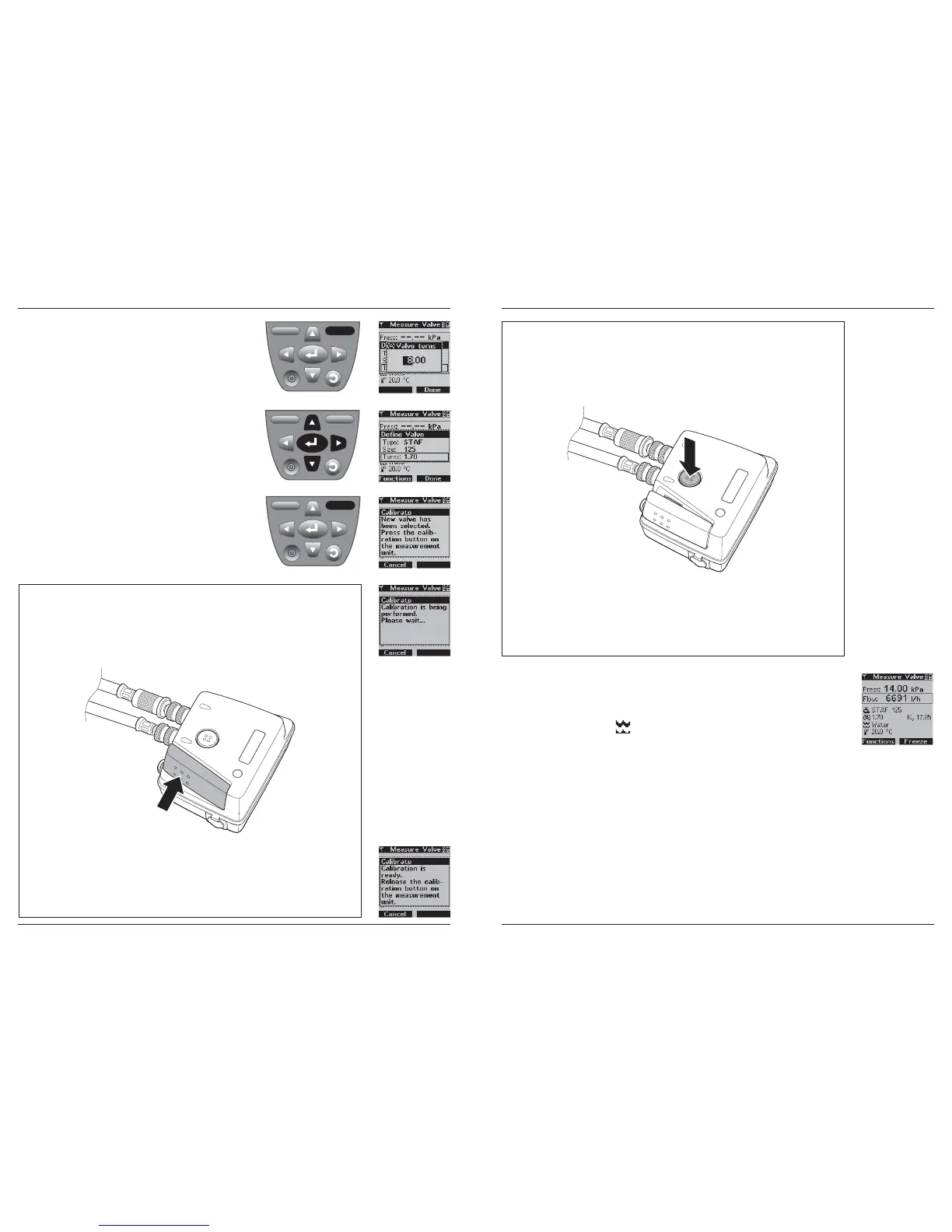

Measurement now begins. TA-CMI displays the differential pressure and
flow. It is important that the correct media type (e.g. water or glycol) is
specified, so that the instrument will display the appropriate flow value.
If the correct media type is displayed in the Measure Valve menu the
appropriate flow value is now displayed.
If the media type displayed does not correspond to actual media type,
define appropriate media according to page 20.
13. Release the calibration button on the sensor unit.
11. When the correct valve setting is specified,
press Done.
If an error message is displayed, press OK.
The setting is automatically changed to the
maximum value possible, or if you have tried to
enter a too small value, to the minimum value
possible.
Then enter the correct number of turns by using
the up, down and right keys. Confirm the new
value by pressing Enter.
12. Press the calibration button on the sensor unit.
When you have finished measuring the valve, disconnect the sensor unit from the measuring
points according to pages 12 – 13.
Risk of burn if the media is hot! Always disconnect the measuring needles from the
measuring points before disconnecting the bayonet couplings at the measuring hoses
and the sensor unit.
!
