TA CMI User Manual

TA-CMI
11
TA-CMI
10

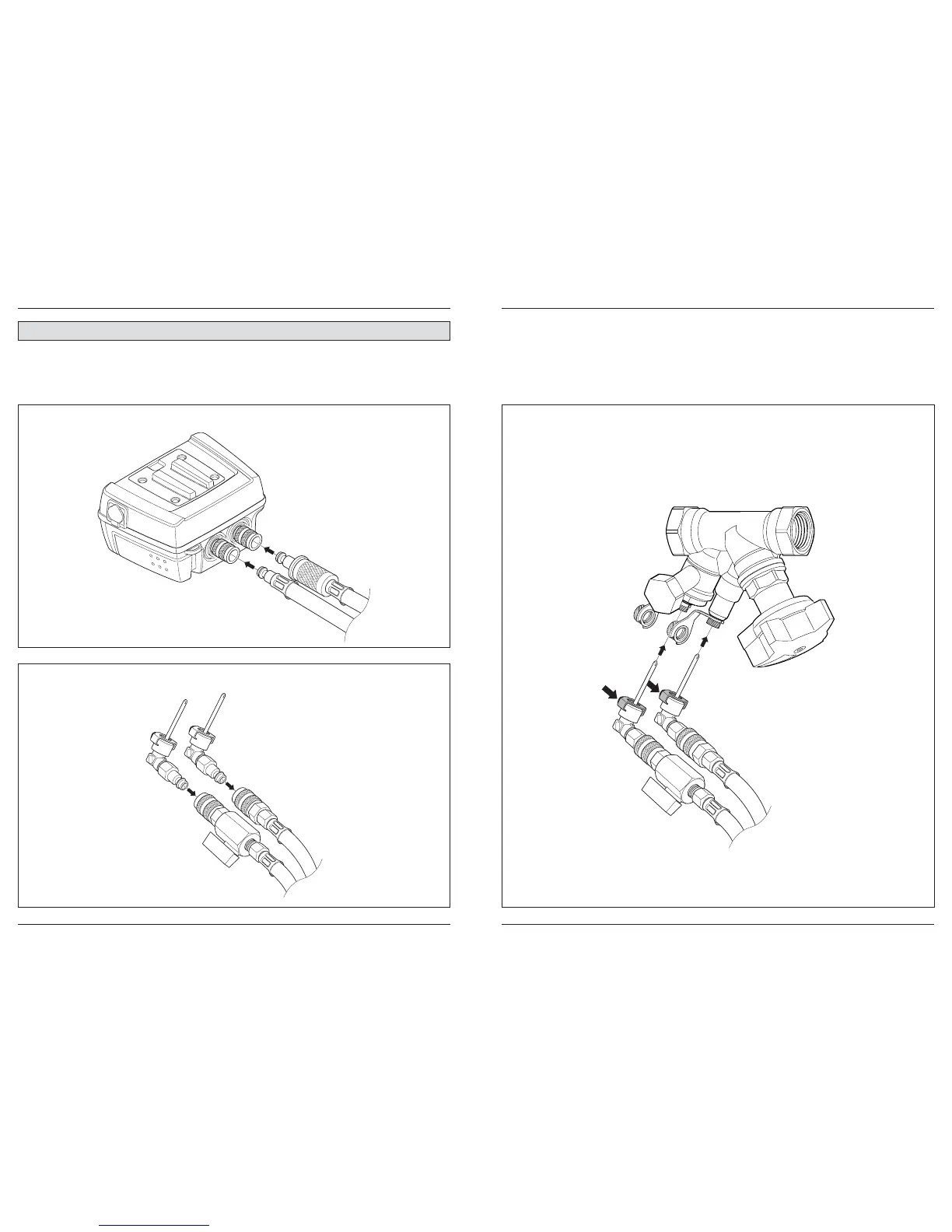

3. Connect the measuring needles to the measuring points.
Note! The shut off valve on the red measuring hose must be open when measuring.
Connection to measuring points
Risk of burn if the media is hot! Always connect the measuring needles and the
measuring hoses to the sensor unit (1 – 2) before connecting the measuring needles to
the measuring points (3).
Connection to measuring points
2. Connect the measuring needles to the measuring hoses.
Connection to measuring points
1. Connect the measuring hoses to the sensor unit.
Note! The connections with the red markings on the sensor unit and the measuring hose shall
be connected to the pressure test point with the red marking (the test point with the highest
pressure). The connections with the blue markings on the sensor unit and the measuring hose
shall be connected to the pressure test point with the blue marking (the test point with the
lowest pressure).
!
