20
English
Installation
To Disassemble
the Cradle
1 Remove the radio from its cradle by sliding the plastic
key supplied with the radio fully into the slot on the left
front of the radio unit. The radio will now slide out
forwards from the cradle, as shown below:

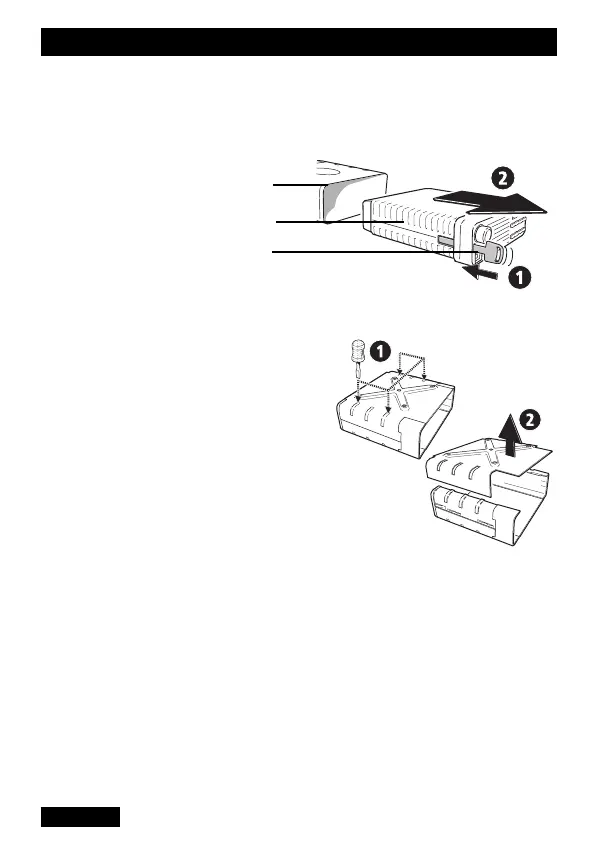

Figure 2: Cradle and Key
2 Disassemble the
cradle by placing it
on a firm surface
and applying
pressure down on
one of the middle
ribs of the plastic
side moulding with
a screwdriver. This
will release the
ribs along this
edge from the
slots in the metal cover with which they mate. A
similar approach will release the other edge of the
metal cover which can now be lifted clear (Figure 3).
Mounting Hold the drilled half of the metal cradle cover in the
position chosen for the radio and use the four cradle
cover mounting holes as a template to mark the
locations for drilling (see figure 4). Ensure that drilling at
the selected points will not damage existing wiring.
Indent the drilling positions with a centre punch and drill
4mm holes for self-tapping screws, or 6mm holes for
Radio Unit
Plastic Key
Cradle
Figure 3: Cradle Disassembly
