224 Transmitter Fault Finding (25W) TB7100 Service Manual
© Tait Electronics Limited October 2005

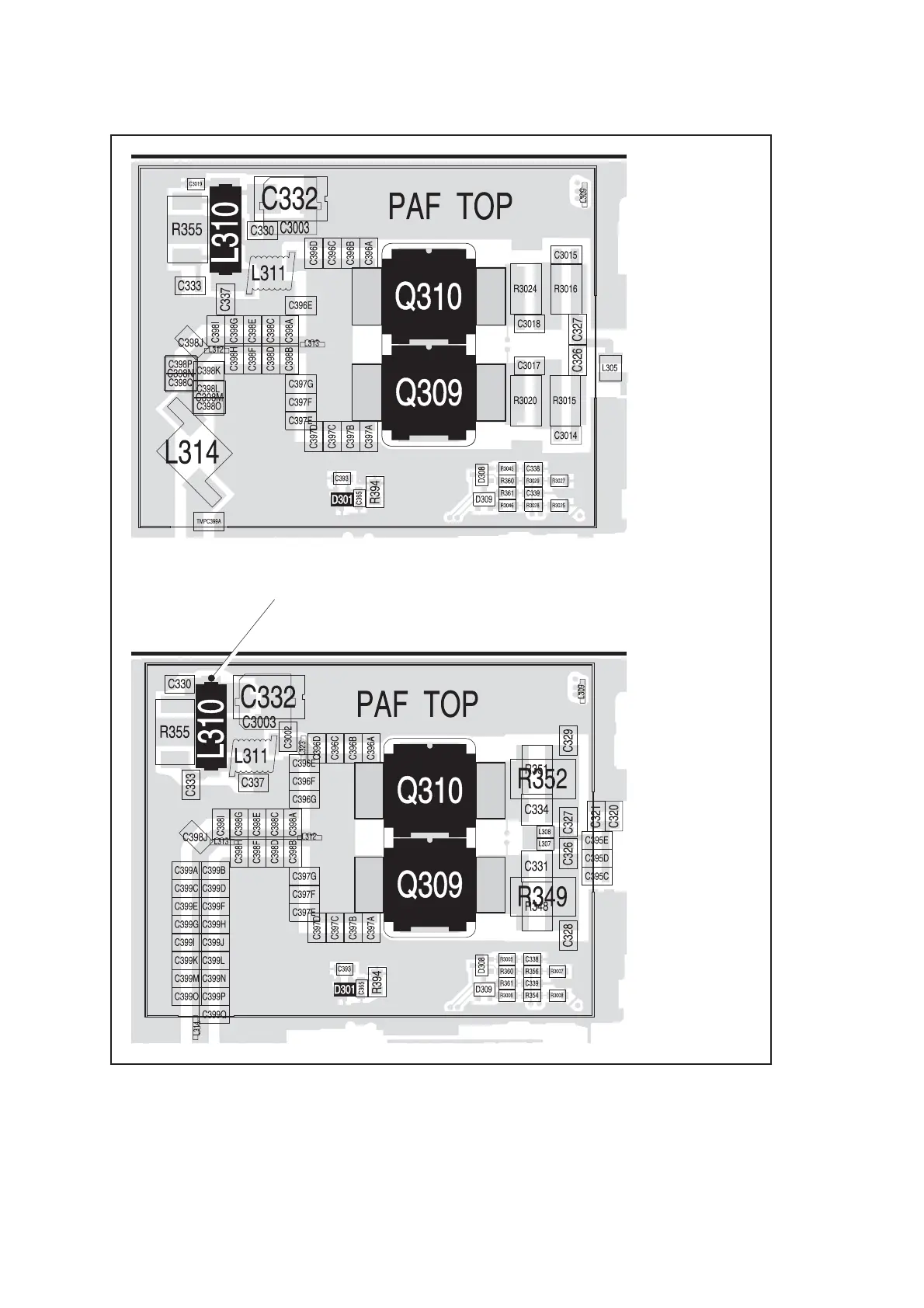

Figure 13.2 Point for measuring the power supply to the PAs
H5, H6 BANDS
B1 BAND
MEASUREMENT POINT ON L310
(B1 BAND SIMILAR)
