TB7100 Service Manual Transmitter Fault Finding (25W) 271
© Tait Electronics Limited October 2005

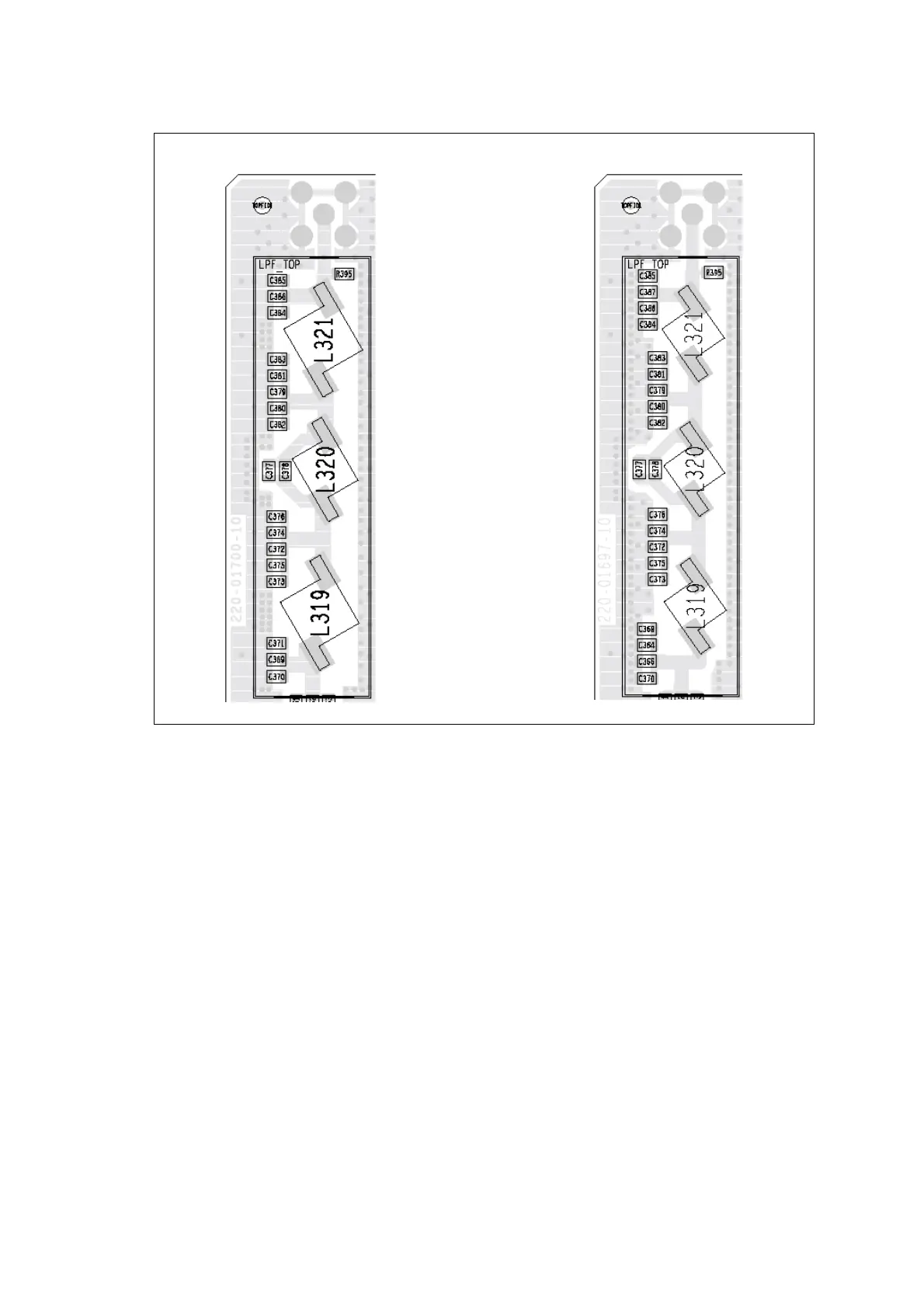

Figure 13.19 Circuitry under the
LPF TOP can (top side)
B1 band H5/H6 bands
