TB7100 Service Manual Transmitter Fault Finding (50W/40W) 303
© Tait Electronics Limited October 2005

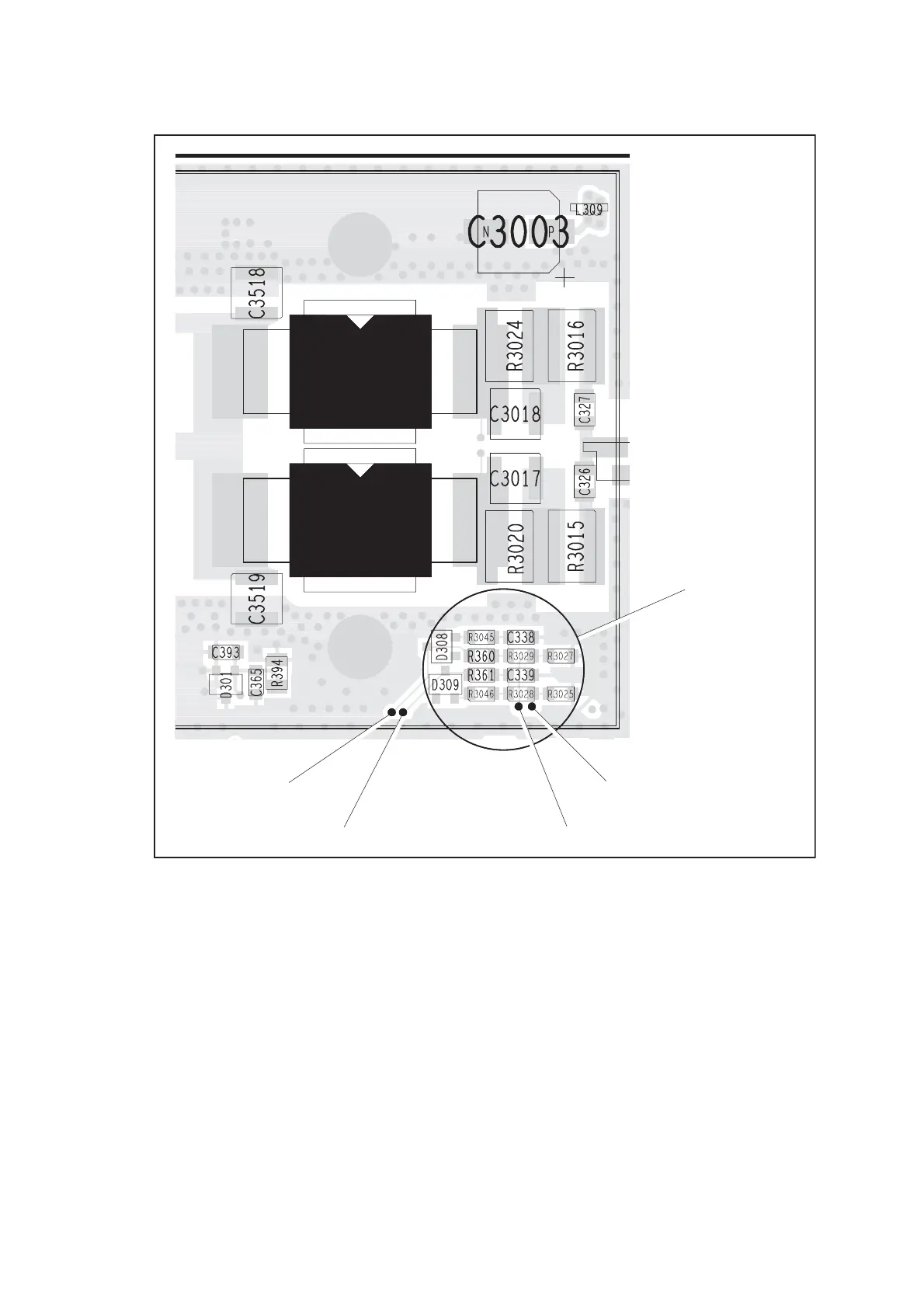

Figure 14.13 PA circuitry under the
PAF TOP can (B1 band)
B1 BAND
Q310
Q309
CIRCUITRY BETWEEN
IC301 AND PAs
VIA TO GATE OF Q310
VIA TO GATE OF Q309VIA TO PIN 14 OF IC301
VIA TO PIN 8 OF IC301
