TB7100 Service Manual Transmitter Fault Finding (50W/40W) 317
© Tait Electronics Limited October 2005

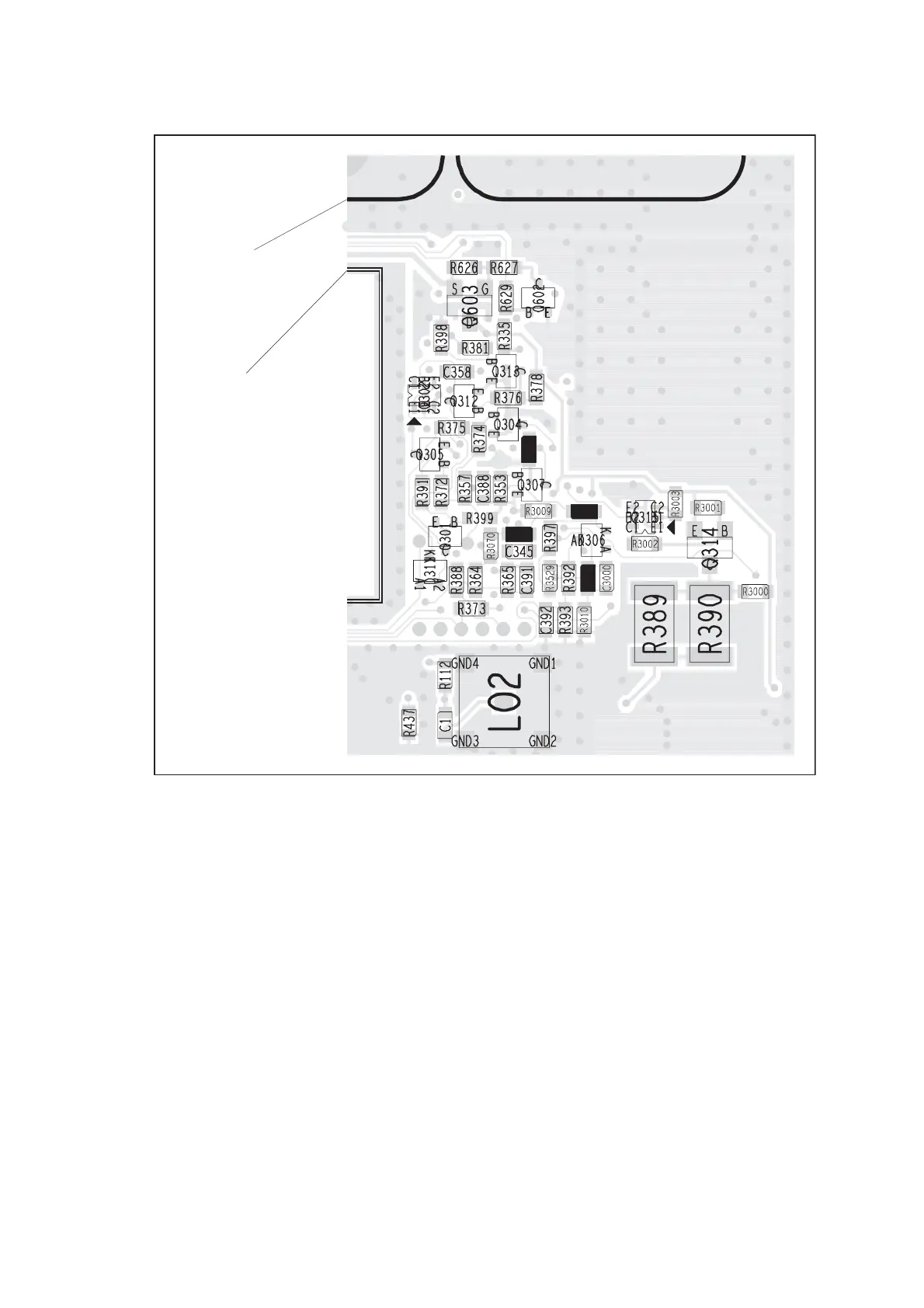

Figure 14.19 Components of concern on the bottom-side of the main board (H5 and H7 bands)
H5, H7 BANDS
C319
R341
R340
R396
COPPER PLATE
VCO BOT CAN
