TB7100 Service Manual Transmitter Fault Finding (50W/40W) 331
© Tait Electronics Limited October 2005

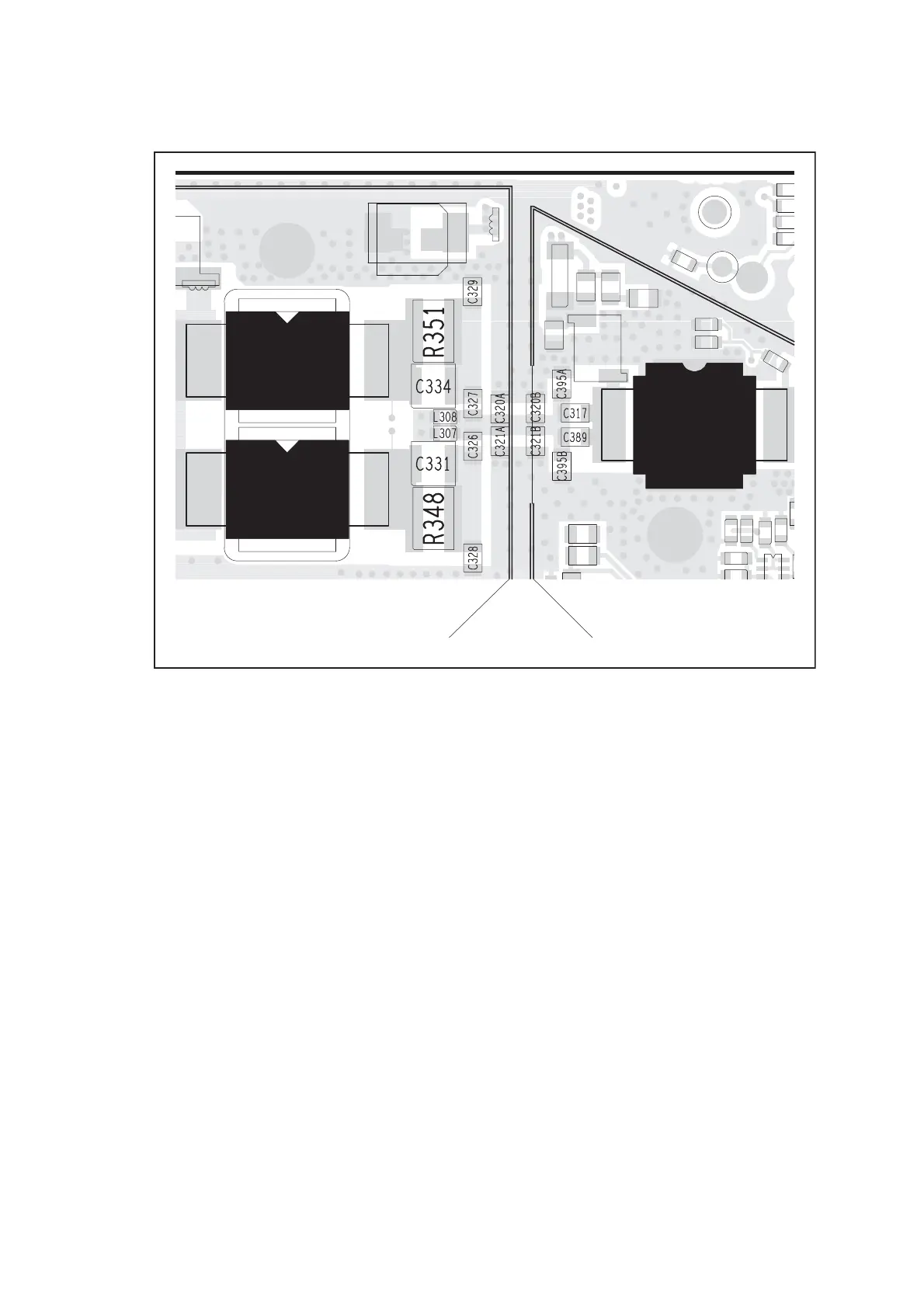

Figure 14.24 Components of the interstage matching circuitry between the PA driver Q306 and the
PAs Q309 and Q310 (H5 and H7 bands)
H5, H7 BANDS
Q310
Q309
Q306
PAF TOP CAN PAD TOP CAN
