TB7100 Service
Manual
Fu
nct
iona
l D
esc
ri
pti
on
33
© Tait Electronics Li
mited
October 2005

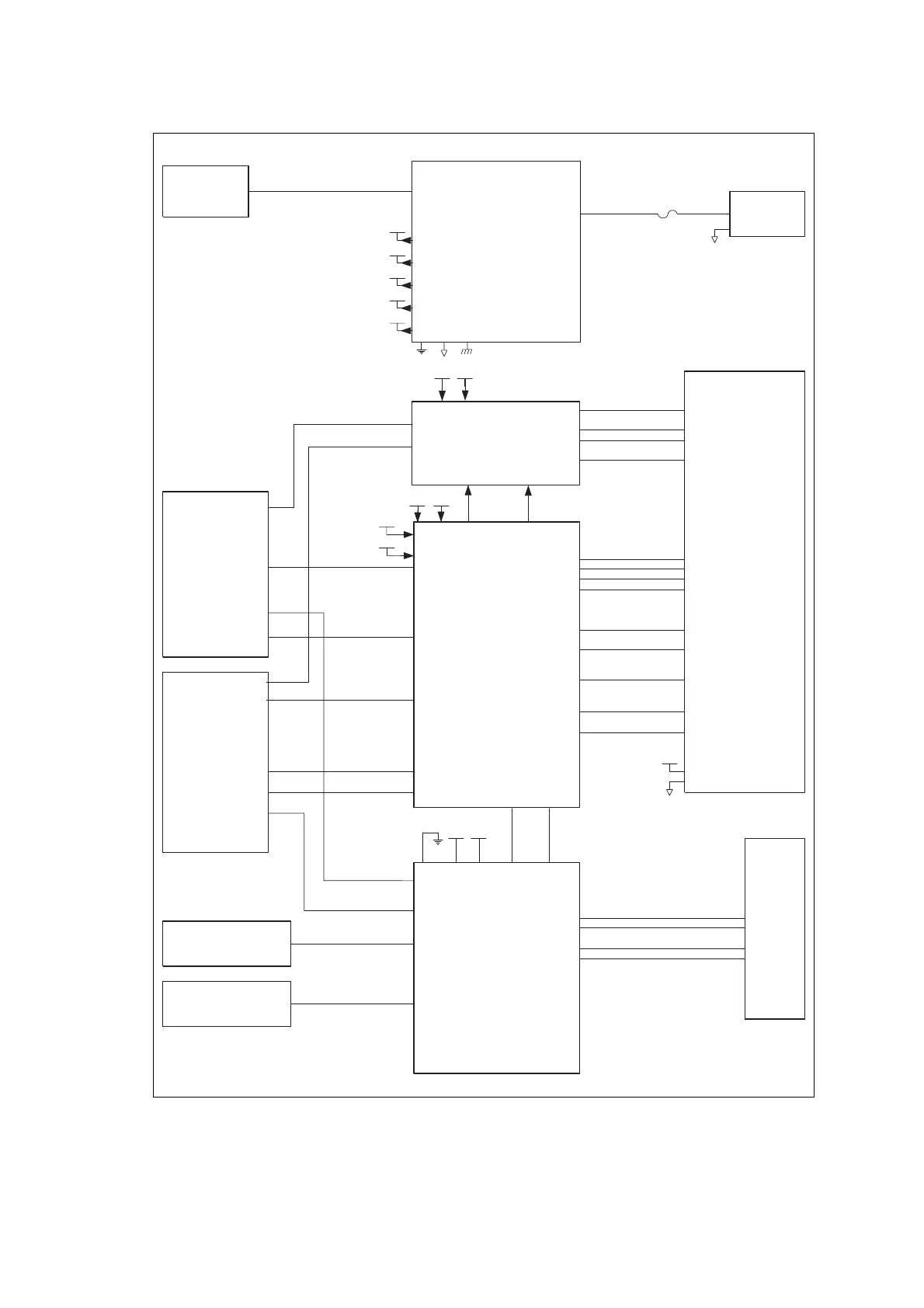

Figur
e 3.7
SI boar
d high-level b
lock diagra
m
DC power
connectors
(transmitter and
receiver modules)
Receiver
module
Transmitter
module
Fan
Temperature
sensor
DC power
connector
TXD
RXD
CTS
RTS
Serial Data connector (IOIOI)
(9-way D-range)
SYSTEM connector
(25-way D-range)
Power Supplies
Control
and
Signaling
13v8 out
RSSI
RX GATE
TX KEY
RX INHIBIT
RELAY DRIVER
OPTO
DIG IO
TX DIG IO
RX DIG IO
AUX IO
TX KEY
AUX IO
RX GATE
RSSI
Data
and
Fan Control
3v3
13v8
13v8
9v
4v5
3v3
13v8 out
13V8
GND
13V8 IN
GND IN
Audio
AUD IN
AUD OUT
RX Line OUT
RX AUDIO OUT
TX AUDIO IN
TX Line IN
RSSI
RX GATE
TX KEY
RX INHIBIT
RELAY DRIVER
OPTO
DIG IO
TX DIG IO
RX DIG IO
13V8 OUT
GND
CWID TONE TOI TONE
CWID TONE TOI TONE
3v3
13v8
PWM 1
PWM 2
TXD
RXD
CTS
RTS
TX DATA
RX DATA
PWM 1
PWM 2
TEMP SENSOR
7.0556
9v
4v5
9v
4v5
RX Line OUT
RX AUDIO OUT
TX AUDIO IN
TX Line IN
Fused
13V8
GND
32
