TB7100 Service Manual CODEC and Audio Fault Finding 363
© Tait Electronics Limited October 2005

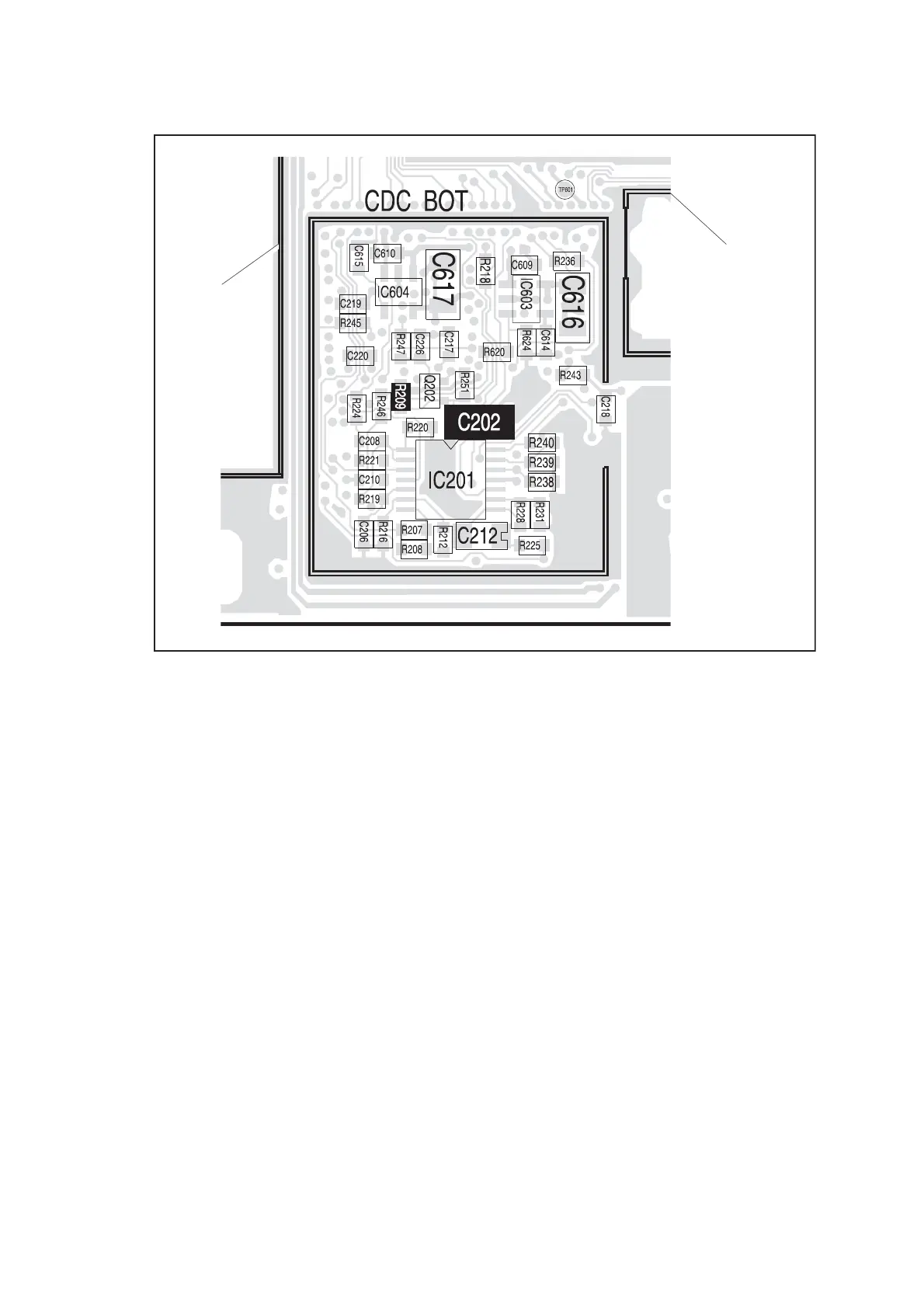

Figure 15.9 Circuitry in under the
CDC BOT can
LO2 BOT CAN
CAN FOR
DIGITAL
BOARD
