TB7100 Service Manual CODEC and Audio Fault Finding 365
© Tait Electronics Limited October 2005

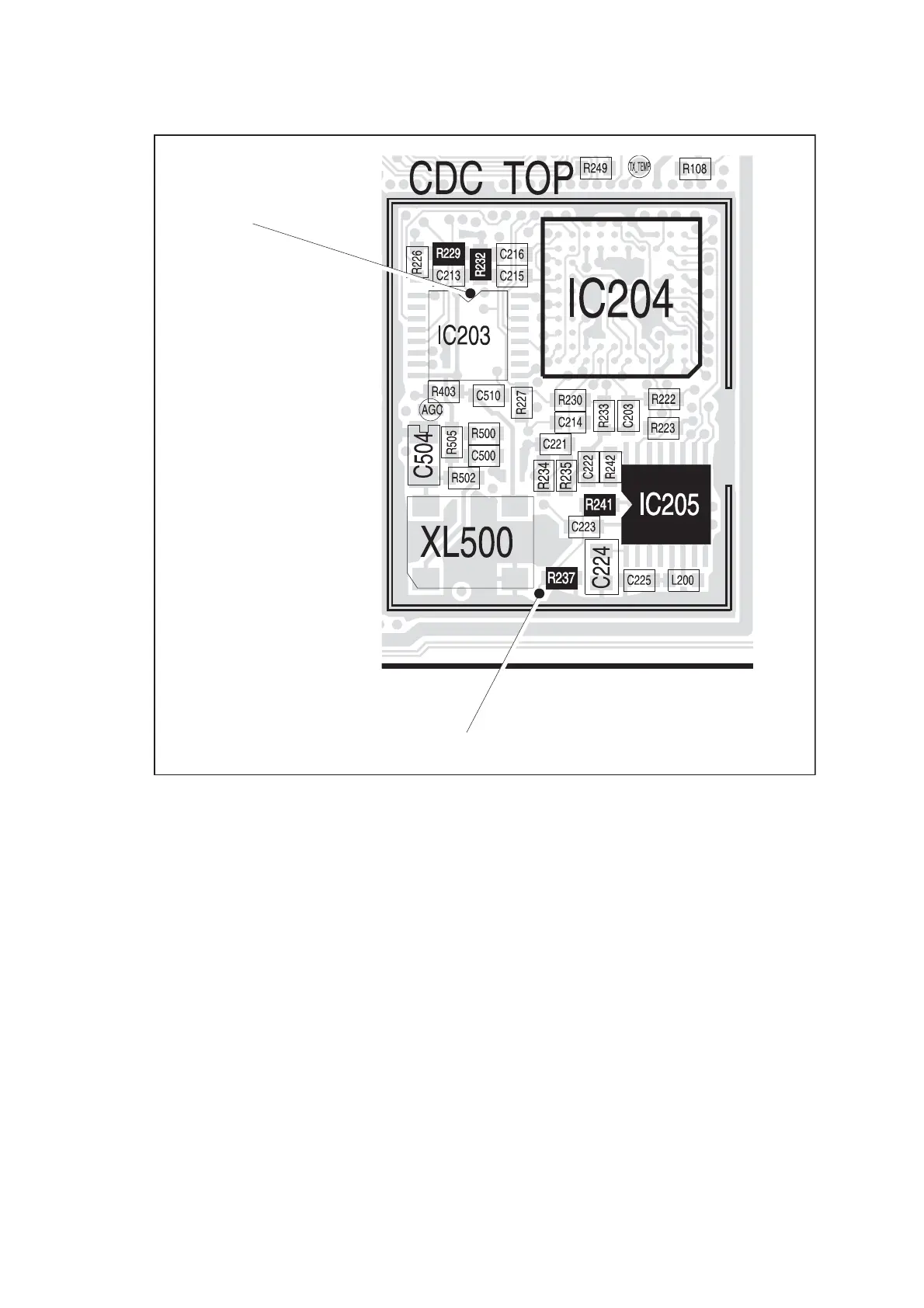

Figure 15.10 Circuitry under the
CDC TOP can
ITF AUD TAP IN
JUNCTION OF R237 AND R241
JUNCTION OF
R229 AND R232
