88 General Information TB7100 Service Manual
© Tait Electronics Limited October 2005
Can Removal
and Installation
Cans are best removed and installed using a can-removal tool. If this tool is
available, technicians should refer to the documentation supplied with the
tool for the correct procedures. If the tool is not available, a hot-air tool may
be used instead. However, technicians require training in the best techniques
to employ in the absence of a can-removal tool. Such training is part of the
accreditation process for service centres.

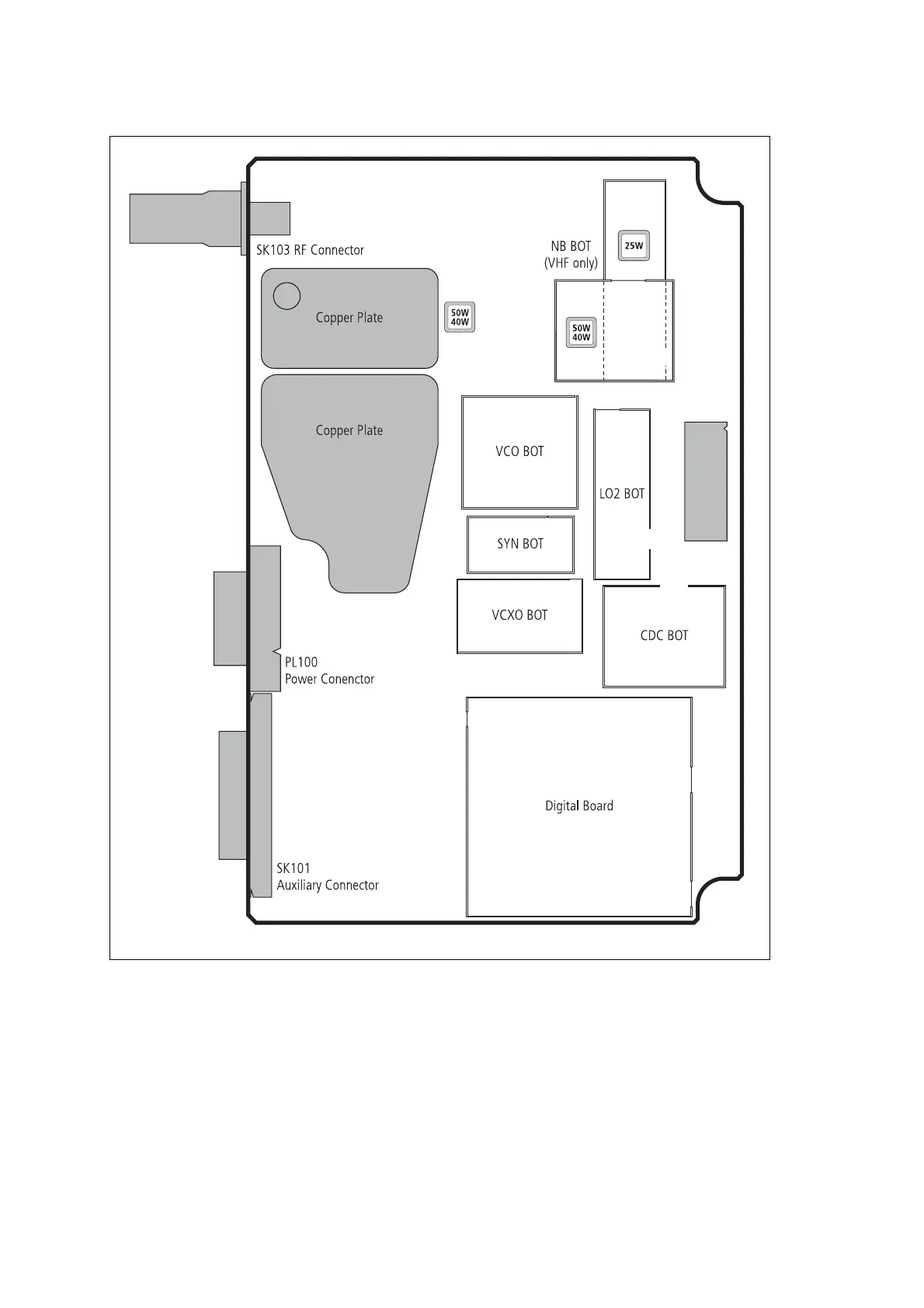

Figure 6.5 Shielding cans and connectors (bottom side)
SK100
User-Interface
Connector
(transmitter only)
(transmitter only)
