TB9300 Installation and Operation Manual Installation 77
© Tait International Limited April 2024
Auxiliary Support
Bracket
TBAA03-13 auxiliary support brackets can be fitted to the rear of the
subrack to provide additional mounting security. Figure 4.7 shows a
standard TBAA03-13 bracket
b fitted in a typical Tait cabinet c. If you
are not using the Tait cabinet, you may have to make your own brackets to
suit your installation.
Notice You must fit the auxiliary support brackets if you intend to
transport a cabinet fitted with a fully built-up base station.
We also recommend that you fit the brackets under the following
conditions:
■ When the installation is in an area prone to earthquakes
■ When third party equipment is installed directly underneath the base
station subrack
General Cabling We recommend that you try to route all cables to and from the base station
along the side of the cabinet so the cooling airflow is not restricted.

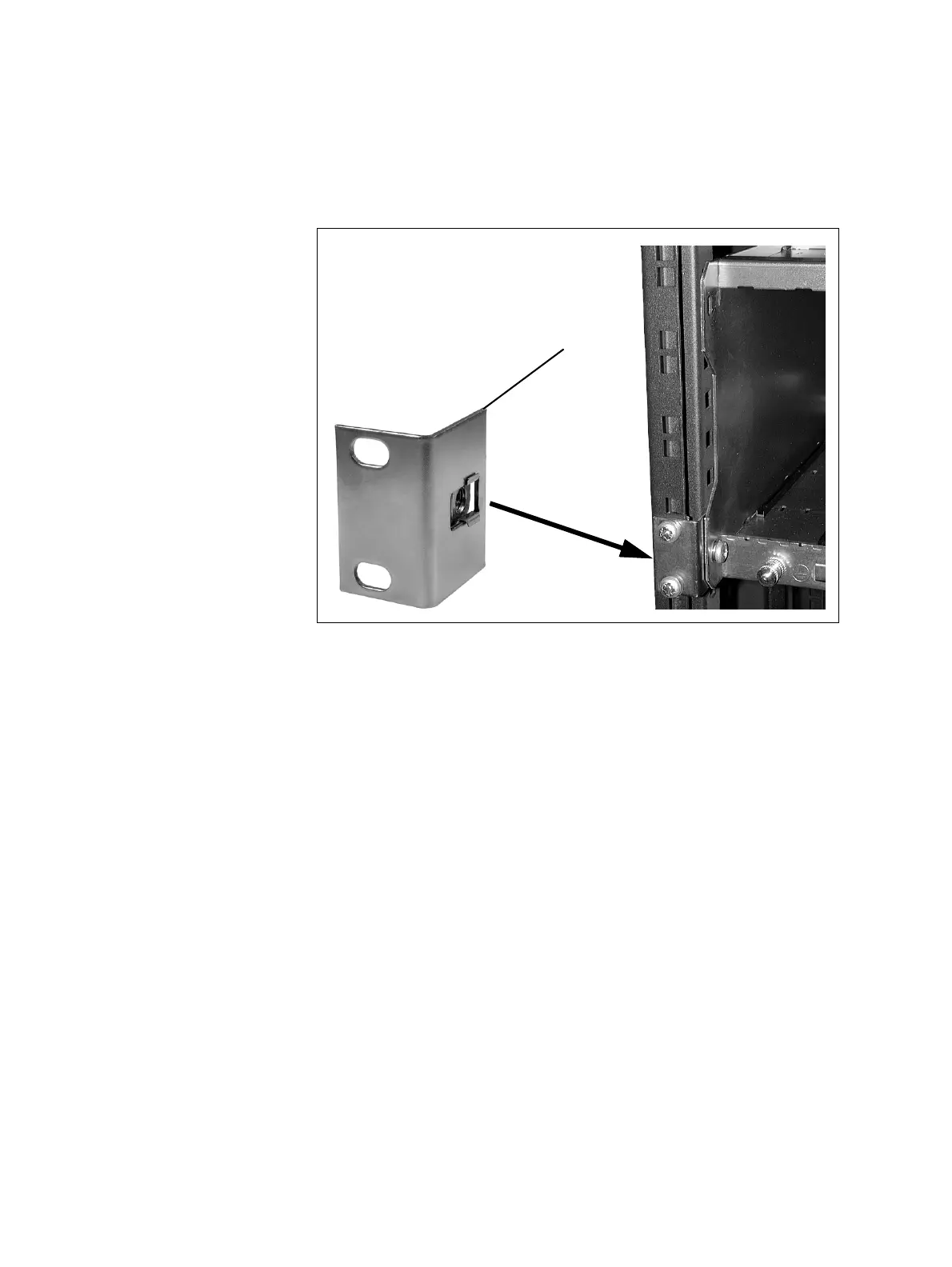

Figure 4.7 Auxiliary support bracket
To Next Page
