78 Installation TB9300 Installation and Operation Manual
© Tait International Limited April 2024
DC Power Cabling
DC power cables should be well supported so that the terminals on the
PMU and the ends of the cables do not have to support the full cable weight.
Figure 4.8 shows two recommended methods of securing these cables to
prevent straining either set of terminals.
We recommend that you fit the supplied covers to the DC terminals to
protect against accidental shorts.

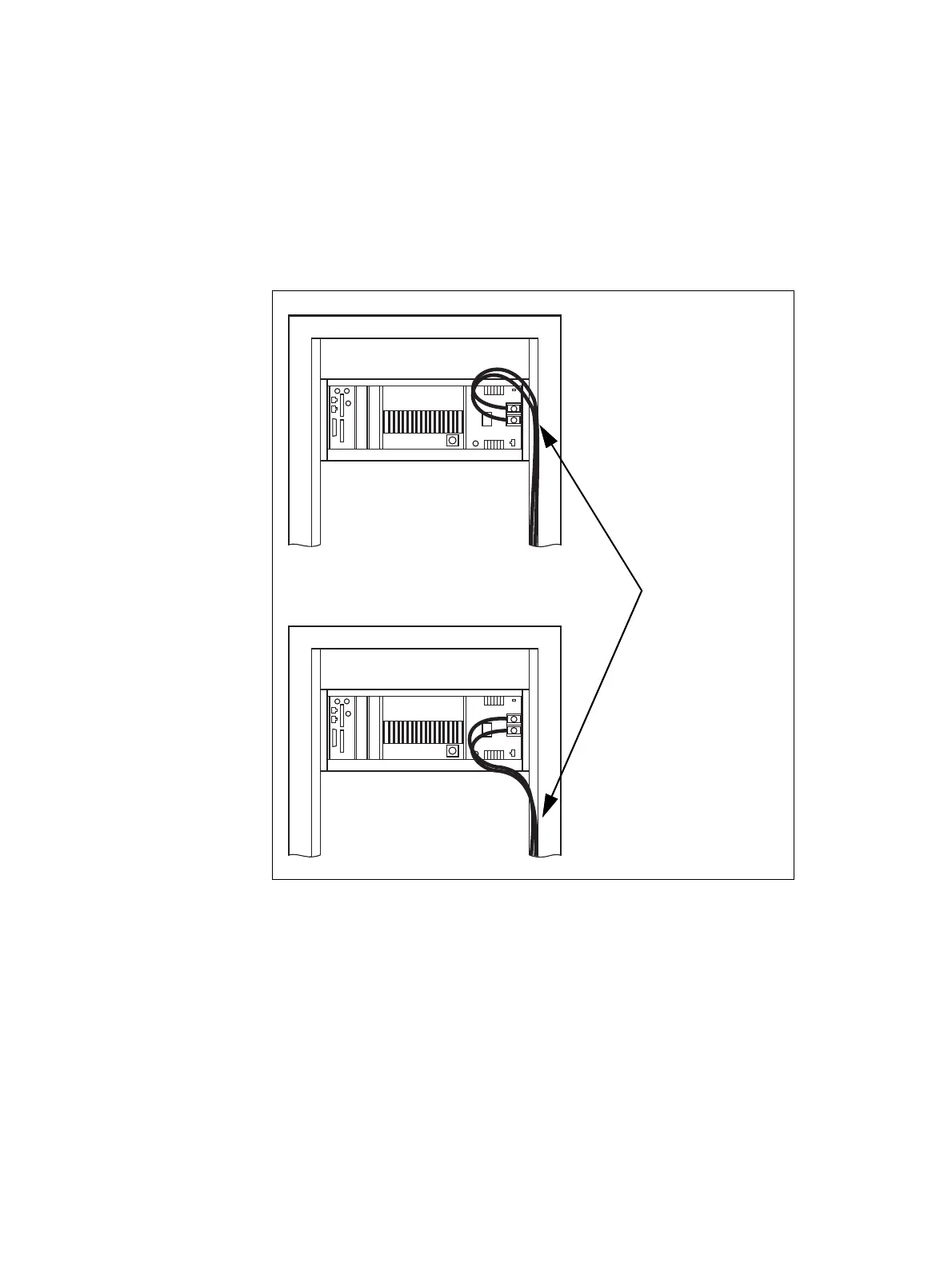

Figure 4.8 DC power cabling
secure the cables to the
cabinet to support their
weight
