Parts of Blank
Control Head
Figure 2.6 and Figure 2.7 illustrate the parts of the blank control head.
Details of the parts are summarised in Table 2.2. Figure 2.6 shows the
exterior of the control head. Illustrated are the front panel and the cover
seal for the programming connector. When the connector is not in use,
the seal is fitted to ensure that the control head is sealed to IP54 standards.
Figure 2.7 shows the interior of the control head. There is provision in
the blank control head for the fitting of a custom circuit board.
Otherwise, as shown in the figure, only the control-head loom is fitted.
The programming connector at one end of the loom is screwed to the
front panel. The female-to-female adaptor needed for connection of the
other end to the radio body is supplied as part of the loom.

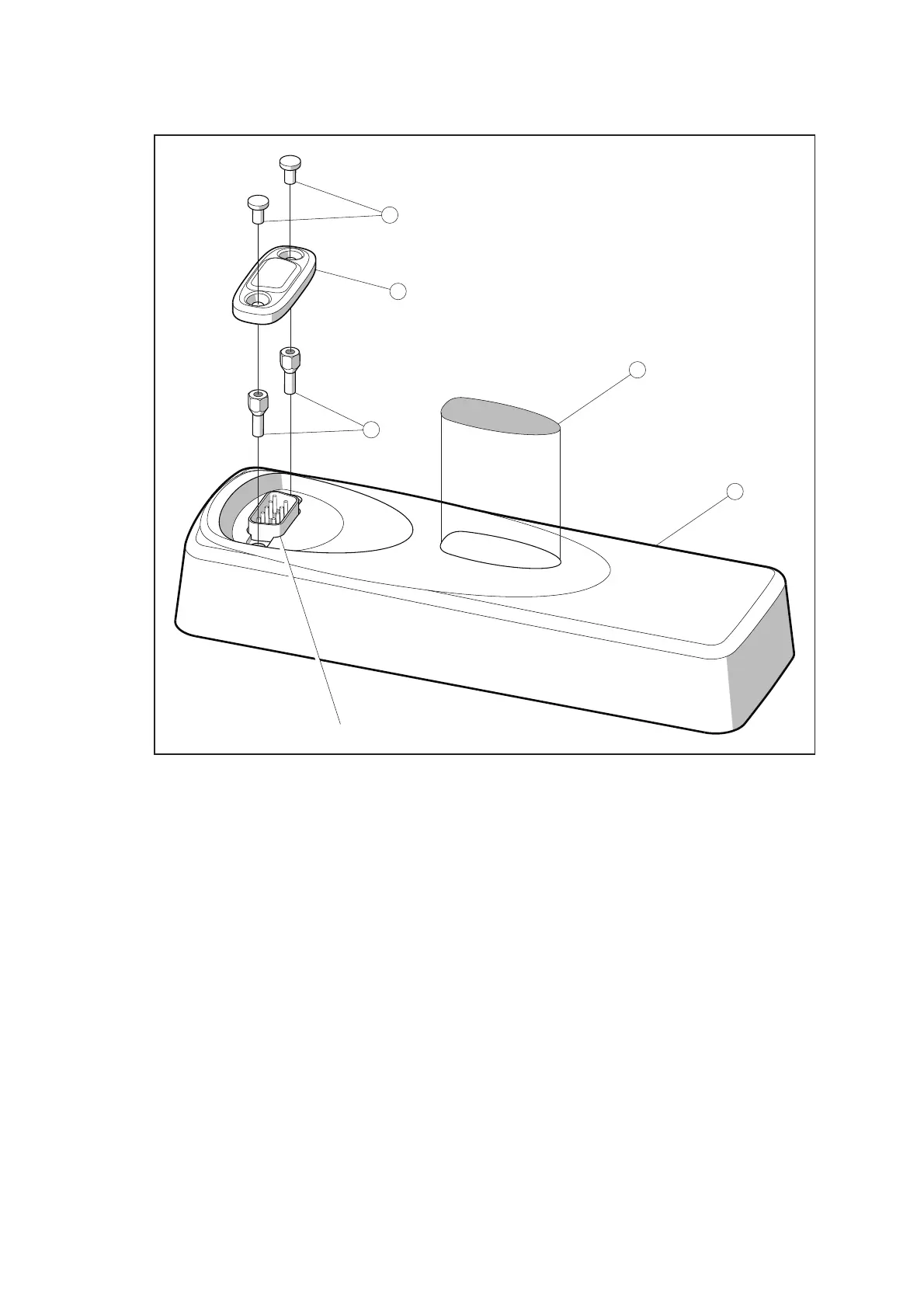

Figure 2.6 Exterior of the blank control head
2
5
4
3
1
PROGRAMMING CONNECTOR
