TM8100/TM8200 Service Manual General Information 115
© Tait Electronics Limited June 2006
Can Removal
and Installation
Cans are best removed and installed using a can-removal tool. If this tool is
available, technicians should refer to the documentation supplied with the
tool for the correct procedures. If the tool is not available, a hot-air tool may
be used instead. However, technicians require training in the best techniques
to employ in the absence of a can-removal tool. Such training is part of the
accreditation process for service centres.

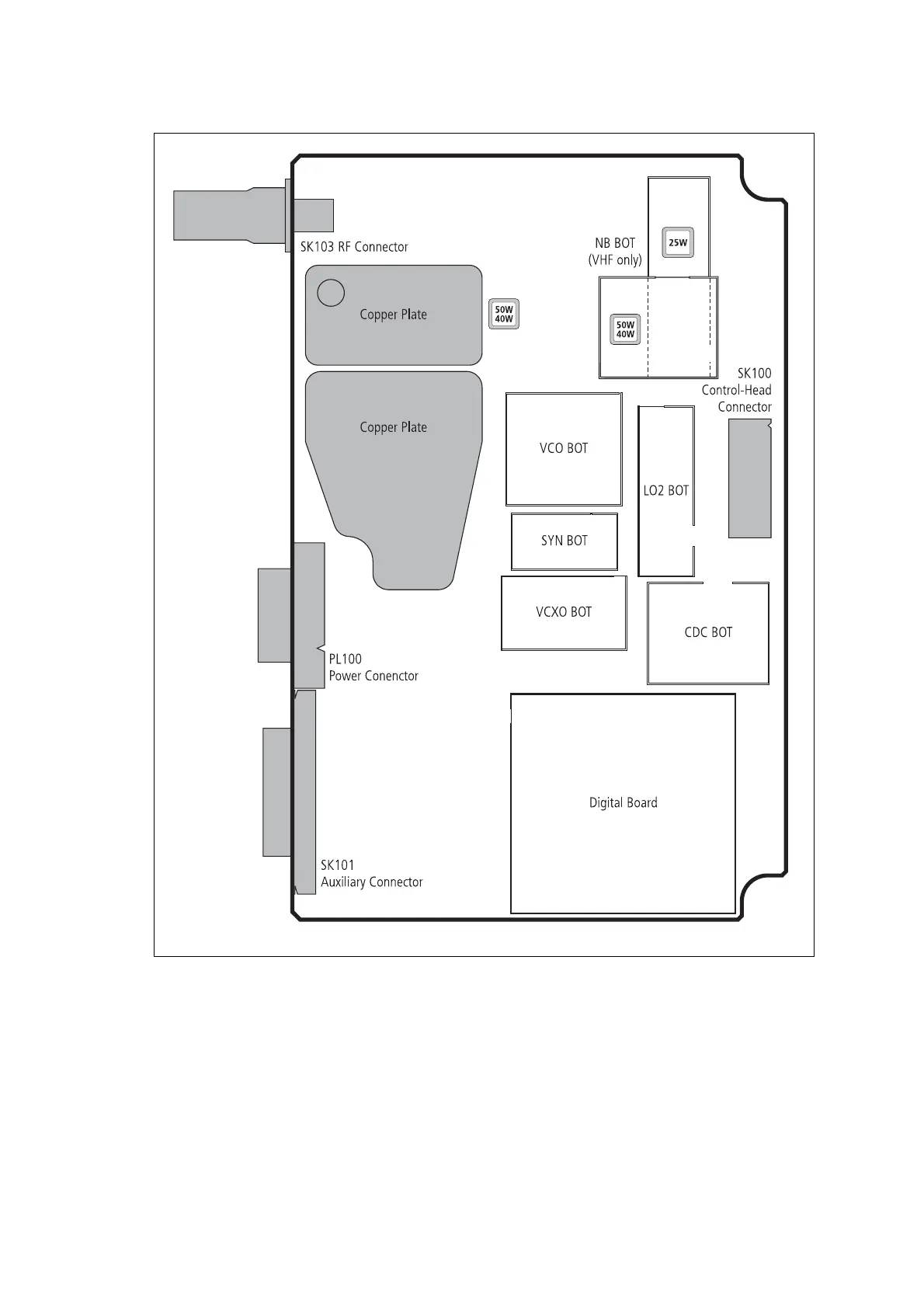

Figure 4.4 Shielding cans and connectors (bottom side of main-board assembly)
