TM8100/TM8200 Service Manual Disassembly and Reassembly 143
© Tait Electronics Limited June 2006

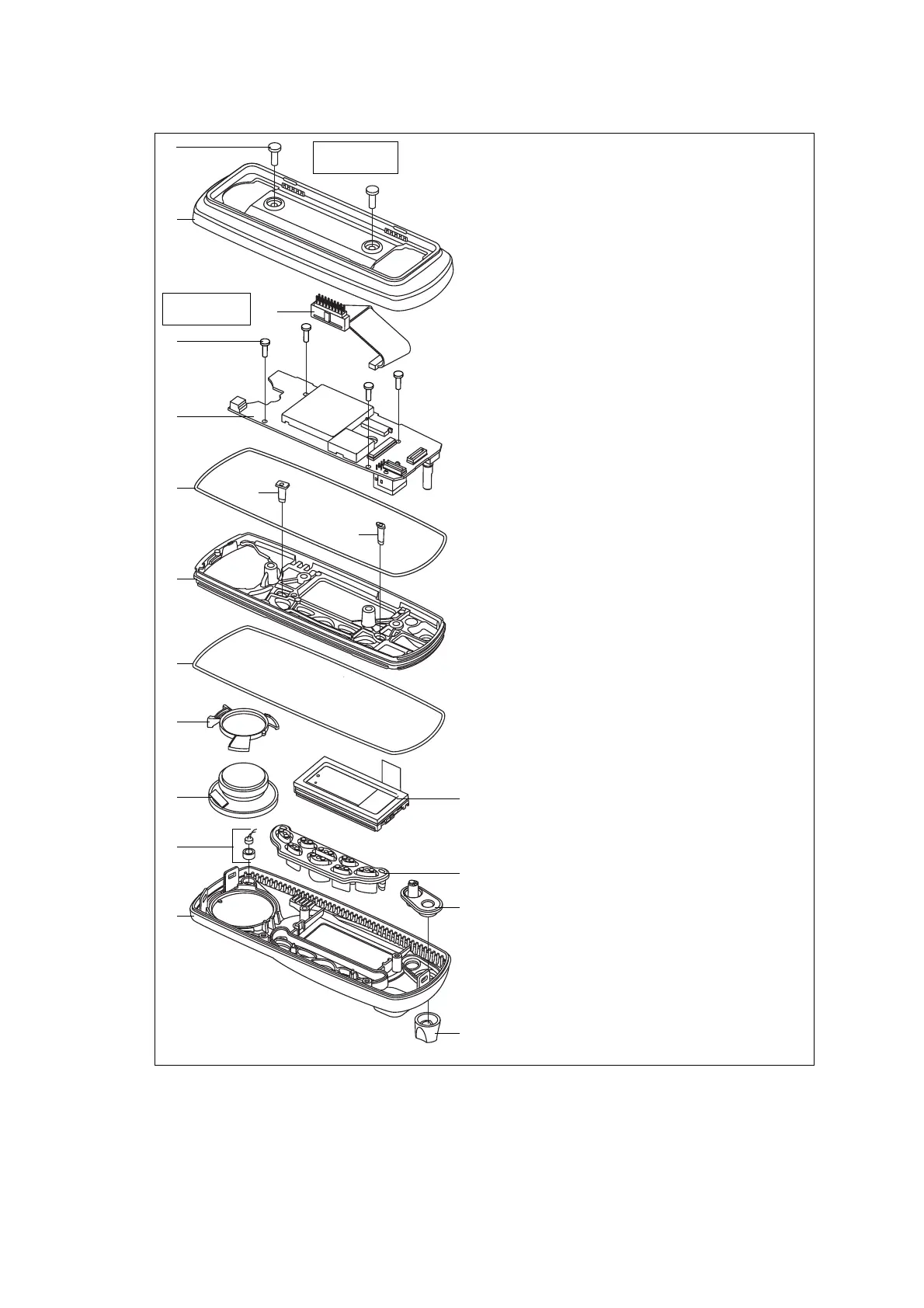

Figure 5.9 Components of the control head (graphical display)
B
M4 x 12 Taptite screw (x2)
C
adaptor flange
D
control-head loom assembly with
female-female adapter
E
3 x 10 PT screw (x4)
F
control-head board
G
space-frame seal (x2)
H
short light pipe
I
long light pipe
J
space-frame
1)
speaker clamp
1!
speaker
1@
LCD assembly (including LCD seal)
1#
main keypad
1$
power keypad
1%
concealed microphone (optional)
1^
front panel assembly
1&
knob for volume-control potentiometer
C
E
F
G
G
1)
H
I
J
1!
1^
1@
1#
1$
1&
x2
x4
D
3451z_02
Torx T20
18lb·in (2.0N·m)
Torx T10
5.5lb·in (0.62N·m)
1%
B
