TM8100/TM8200 Service Manual Power Supply Fault Finding 165
© Tait Electronics Limited June 2006

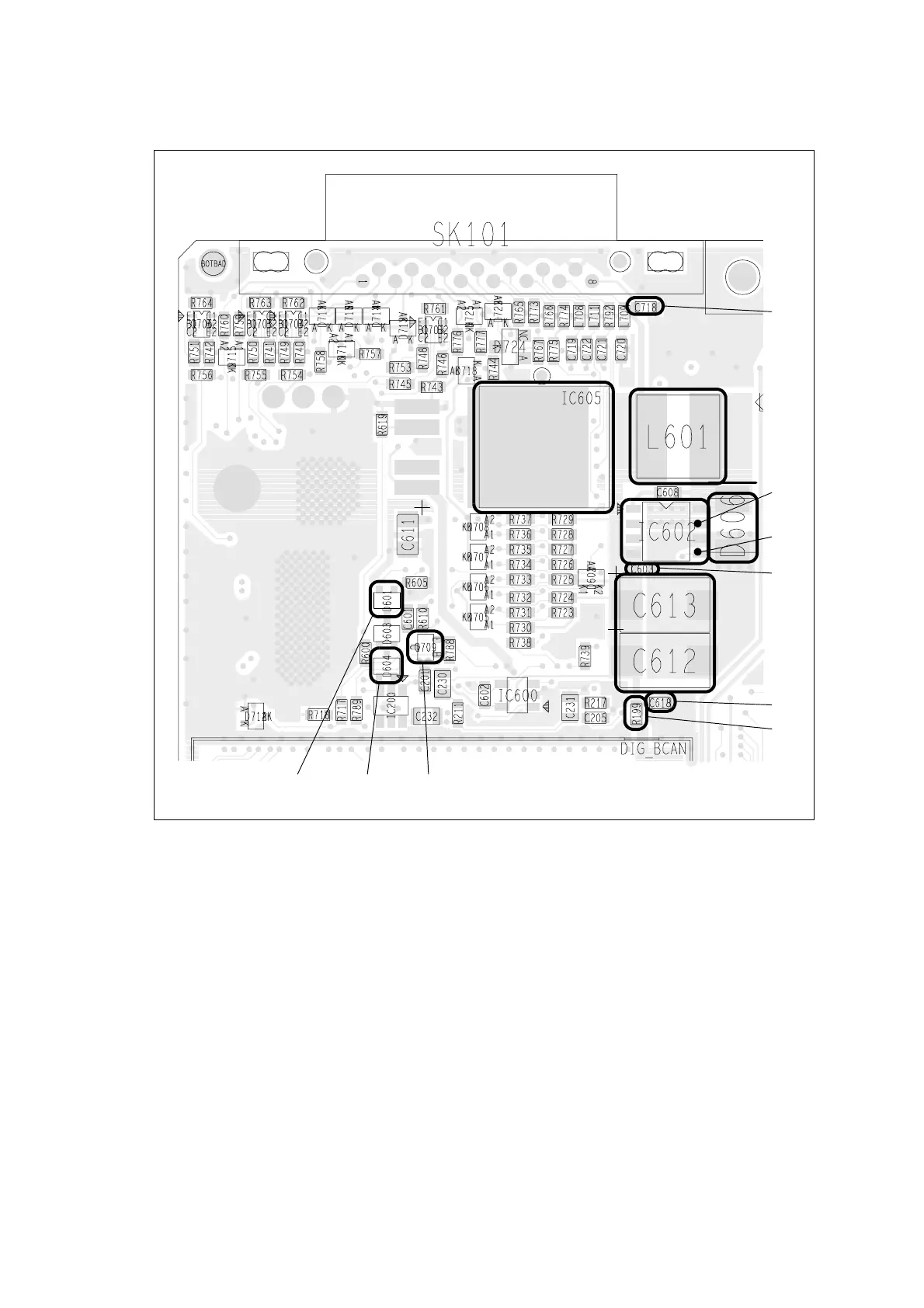

Figure 7.1 Important components of the power-supply circuitry (bottom side),
including 3.3V regulator IC602
pin 7
pin 5
C603
C618
R199
D604 Q709D601
C718
