Tait TM8110

TM8100/TM8200 Service Manual Receiver Fault Finding 243
© Tait Electronics Limited June 2006

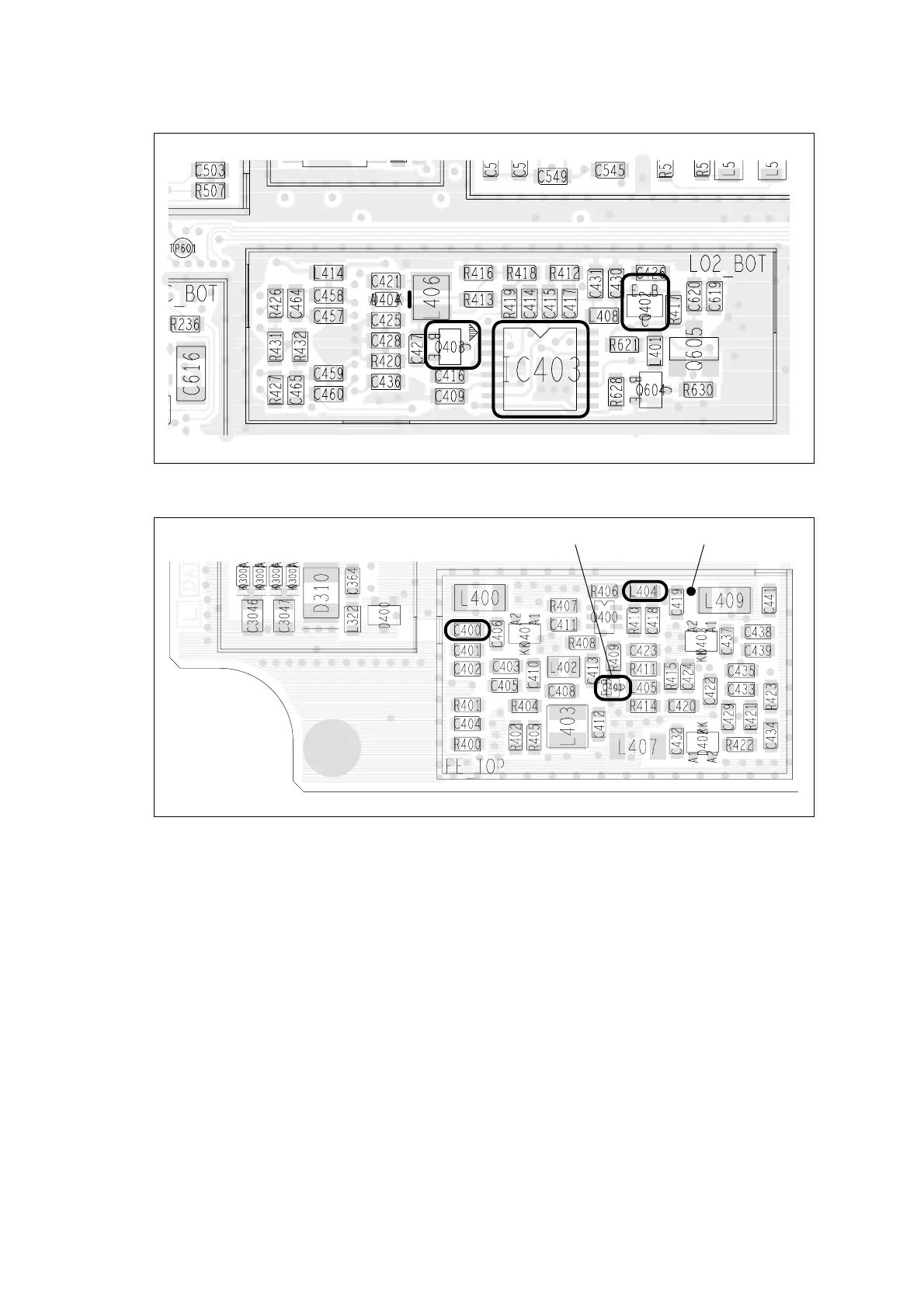

Figure 10.2 Receiver circuitry under the LO2 BOT can (UHF shown)
Figure 10.3 Receiver circuitry under the FE TOP can (top side)
Measurement pointQ401
