TM8100/TM8200 Service Manual Transmitter Fault Finding (40W/50W) 265
© Tait Electronics Limited June 2006

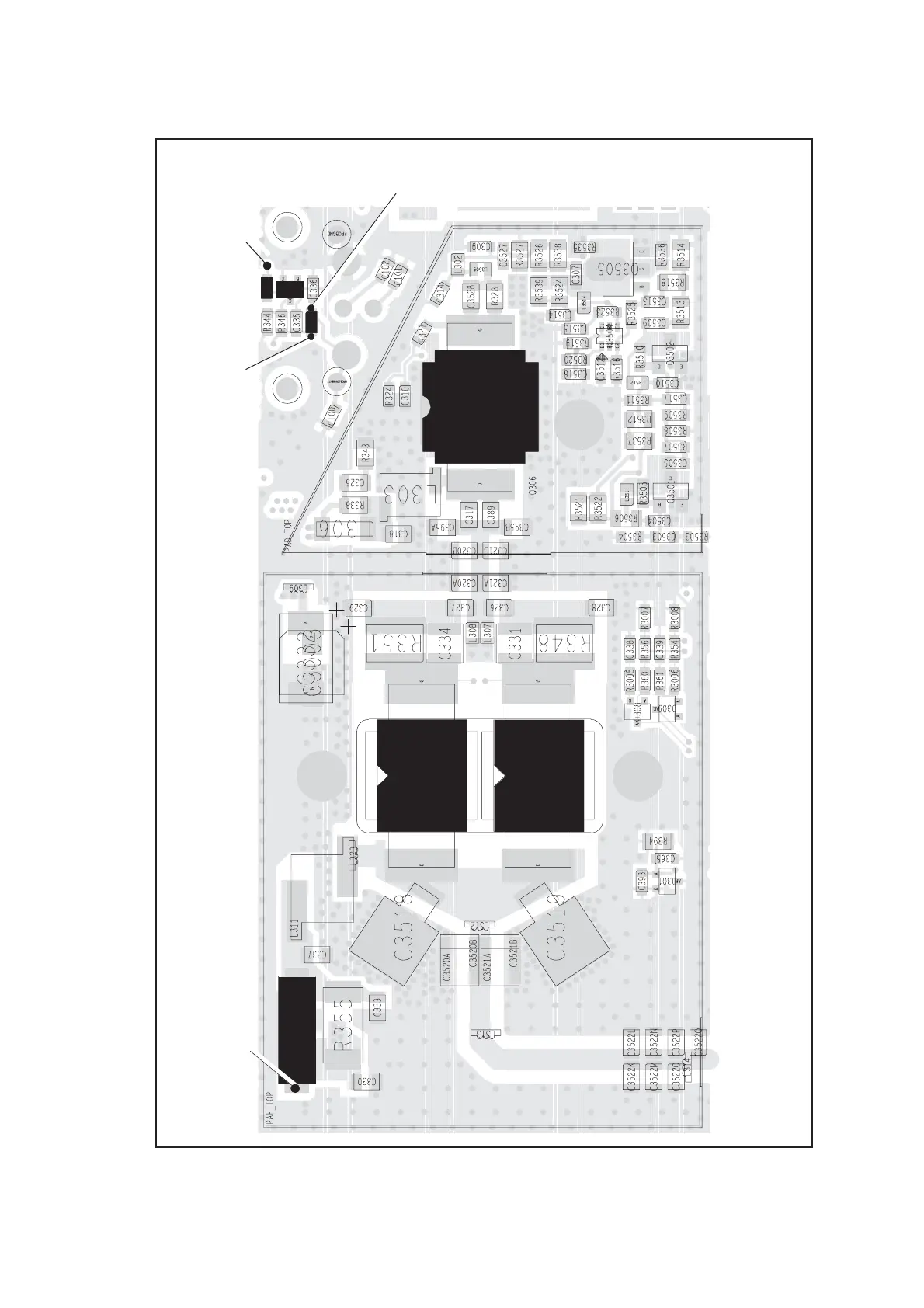

Figure 11.3 Point for measuring the power supply to the PAs and PA driver (UHF)
Q310
Q309
Q306
R339
Q308
L310
MEASUREMENT POINT ON L310
POINT 1
ON R350
POINT 2 ON R 350
MEASUREMENT
POINT ON R339
R350
