276 Transmitter Fault Finding (40W/50W) TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

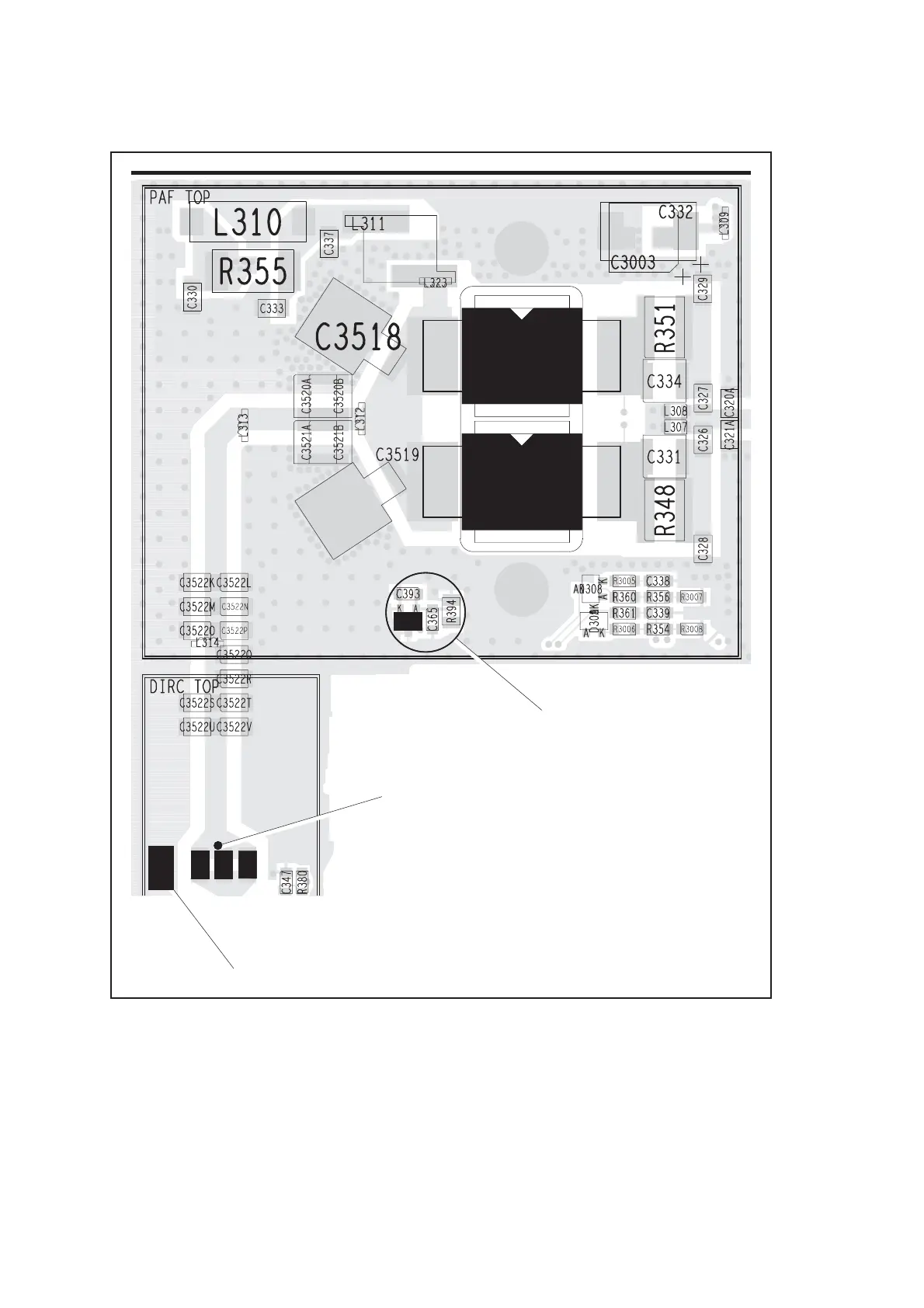

Figure 11.6 PA circuitry under the PAF TOP can and part of the directional coupler under the
DIRC TOP can (UHF shown)
H5, H7 BANDS
C348
C349
C350
D301
Q310
Q309
TEST PAD
MOUNTING POINT FOR
TEST CAPACITOR
TEMPERATURE SENSOR
