314 Transmitter Fault Finding (40W/50W) TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

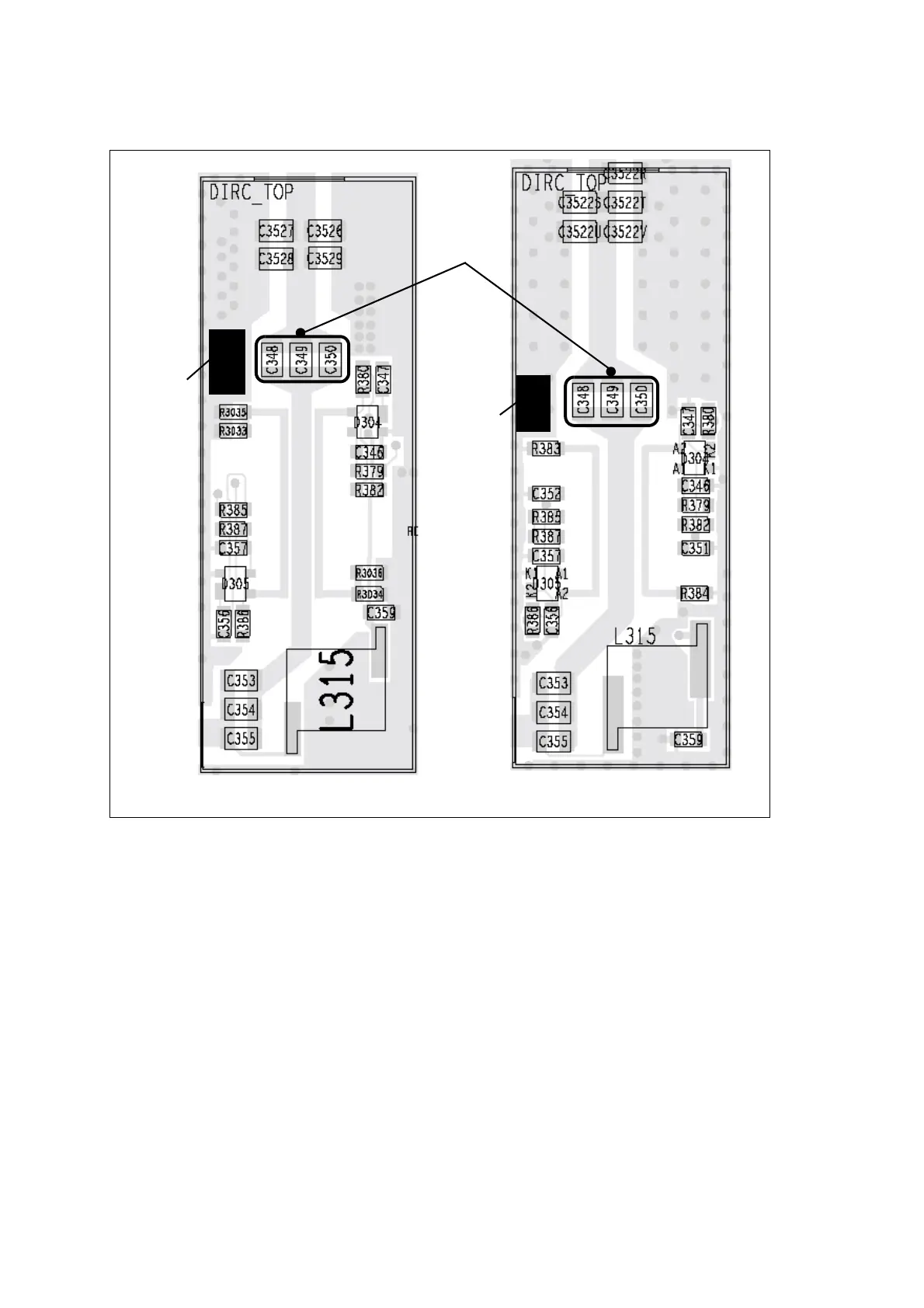

Figure 11.20 Circuitry under the DIRC TOP can, and the points for attaching the test lead and test
capacitor
VHF UHF
Mounting point
for test capacitor
Test pad
Test pad
