354 Transmitter Fault Finding (25W) TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

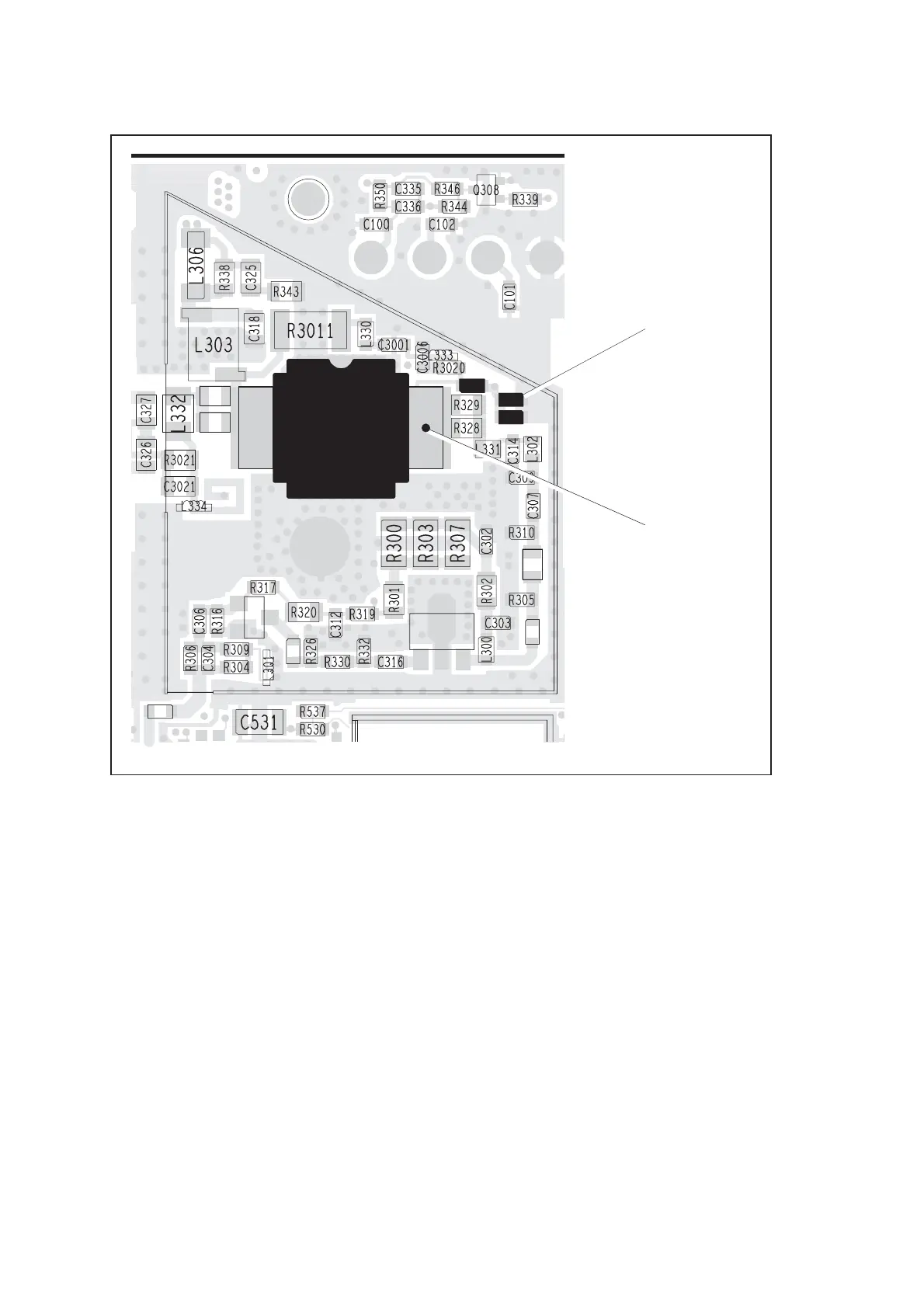

Figure 12.10 PA driver circuitry under the PAD TOP can (VHF shown)
R308
R324
C310
R327
C301
Q303
C313
Q300
C300
C317
C389
Q306
PAD TOP
D1 BAND
COMPONENTS
C310, R324, R327
GATE OF Q306
