TM8100/TM8200 Service Manual Transmitter Fault Finding (25W) 369
© Tait Electronics Limited June 2006

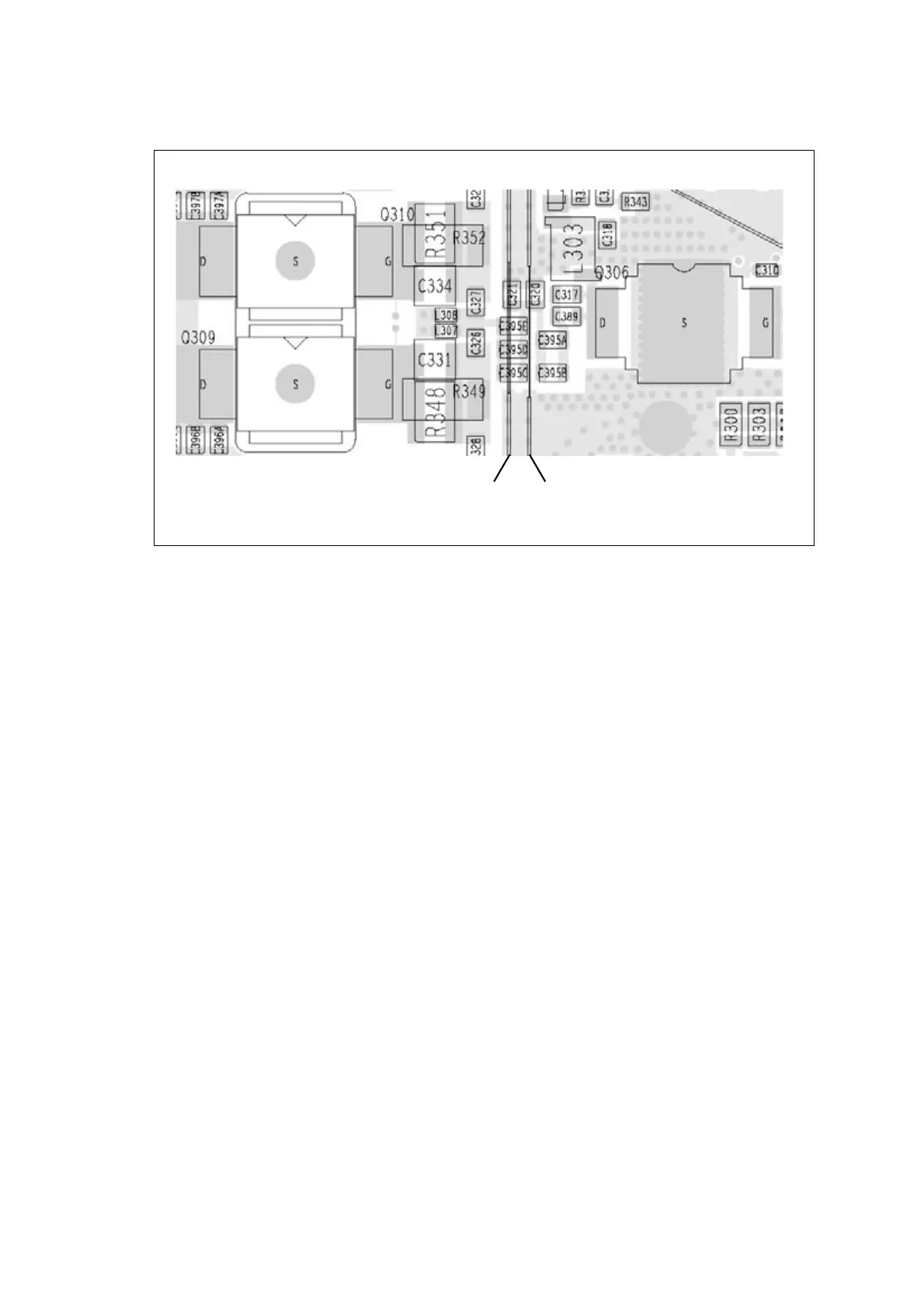

Figure 12.15 Components of the interstage matching circuitry between the PA driver Q306 and the
PAs Q309 and Q310 (UHF shown)
PAF TOP can PAD TOP can
