TM8100/TM8200 Service Manual Transmitter Fault Finding (25W) 371
© Tait Electronics Limited June 2006

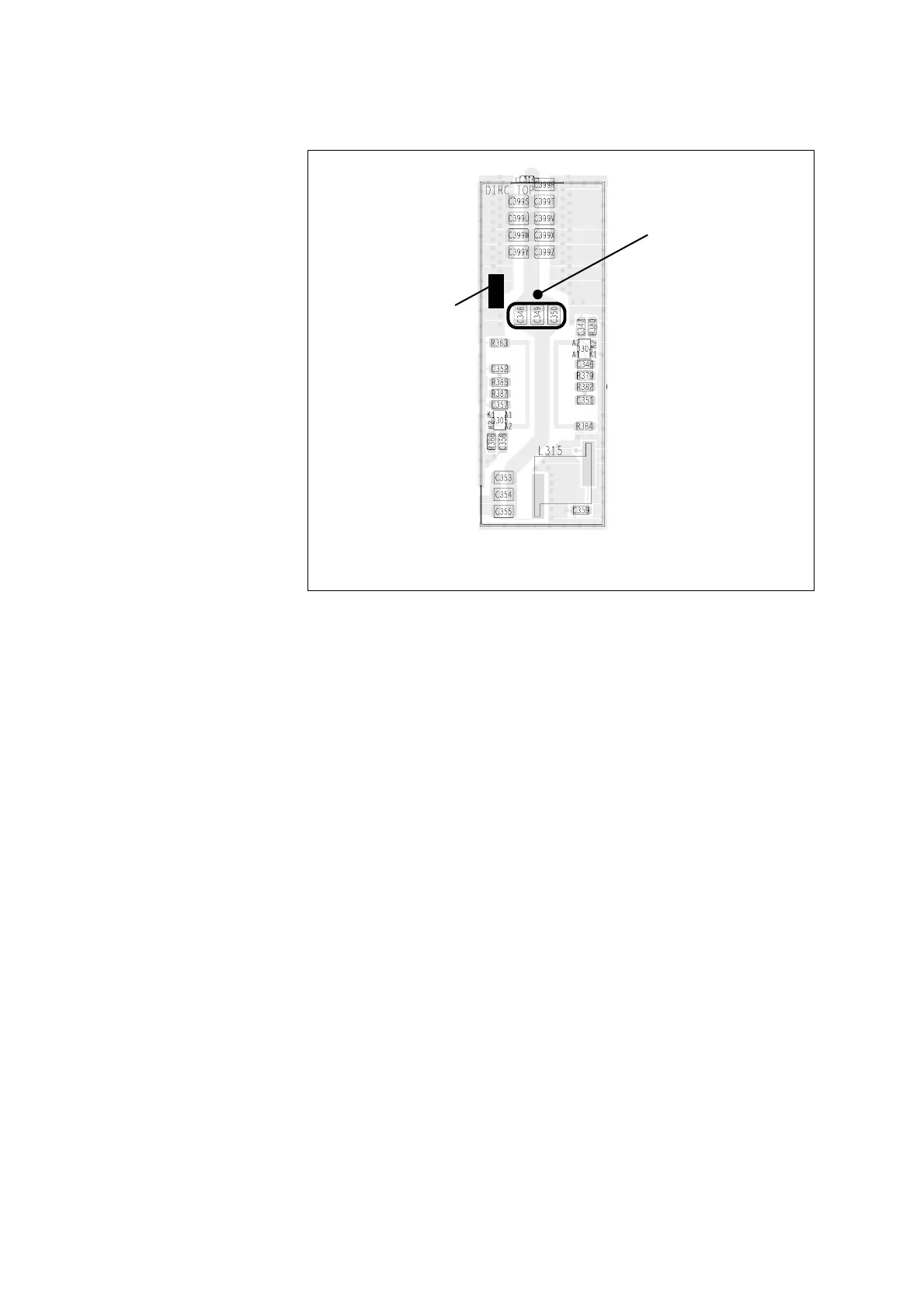

Figure 12.16 Circuitry under the DIRC TOP can, and the points for attaching the
test lead and test capacitor (UHF shown)
MOUNTING POINT
FOR TEST
CAPACITOR
SOLDER OUTER
SHEATH TO GND
