TM8100/TM8200 Service Manual CODEC and Audio Fault Finding 393
© Tait Electronics Limited June 2006

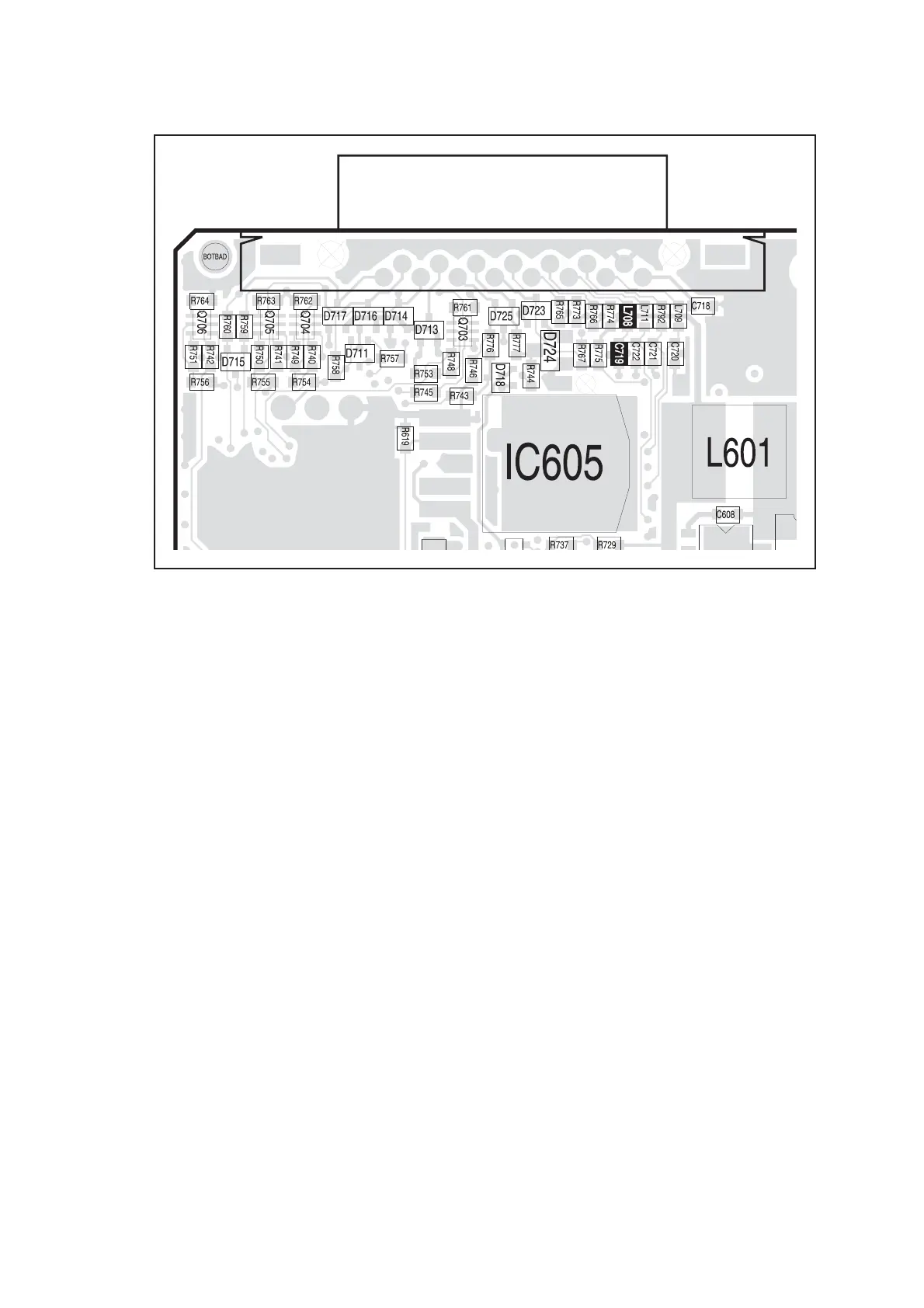

Figure 13.6 Circuitry in the vicinity of the auxiliary connector (bottom side)
AUXILIARY CONNECTOR
SK101
