TM8100/TM8200 Service Manual CODEC and Audio Fault Finding 395
© Tait Electronics Limited June 2006

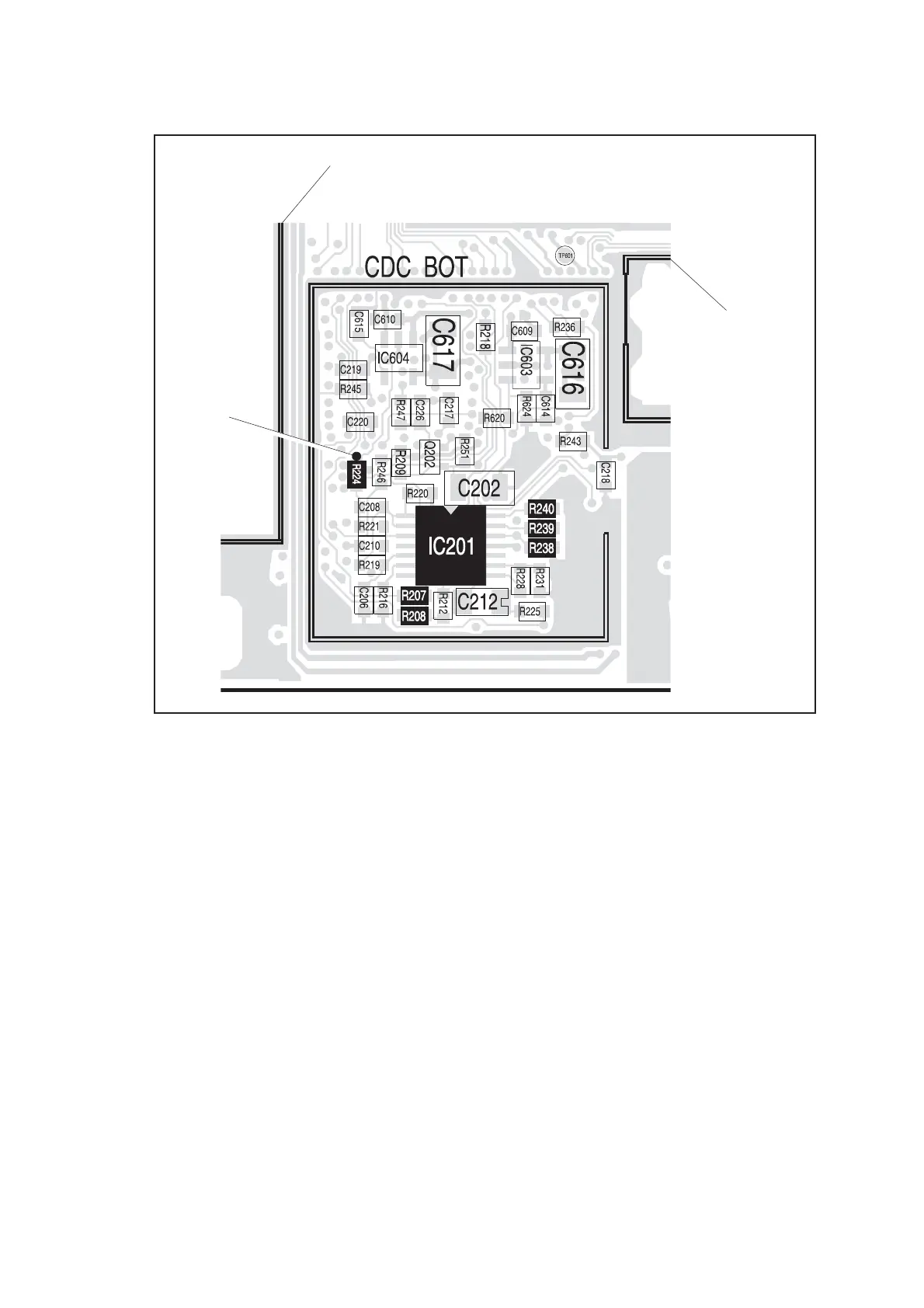

Figure 13.7 Circuitry under the CDC BOT can
LO2 BOT CAN
CAN FOR DIGITAL BOARD
JUNCTION
OF R224
AND IC204
