TM8100/TM8200 Service Manual Spare Parts 445
© Tait Electronics Limited June 2006

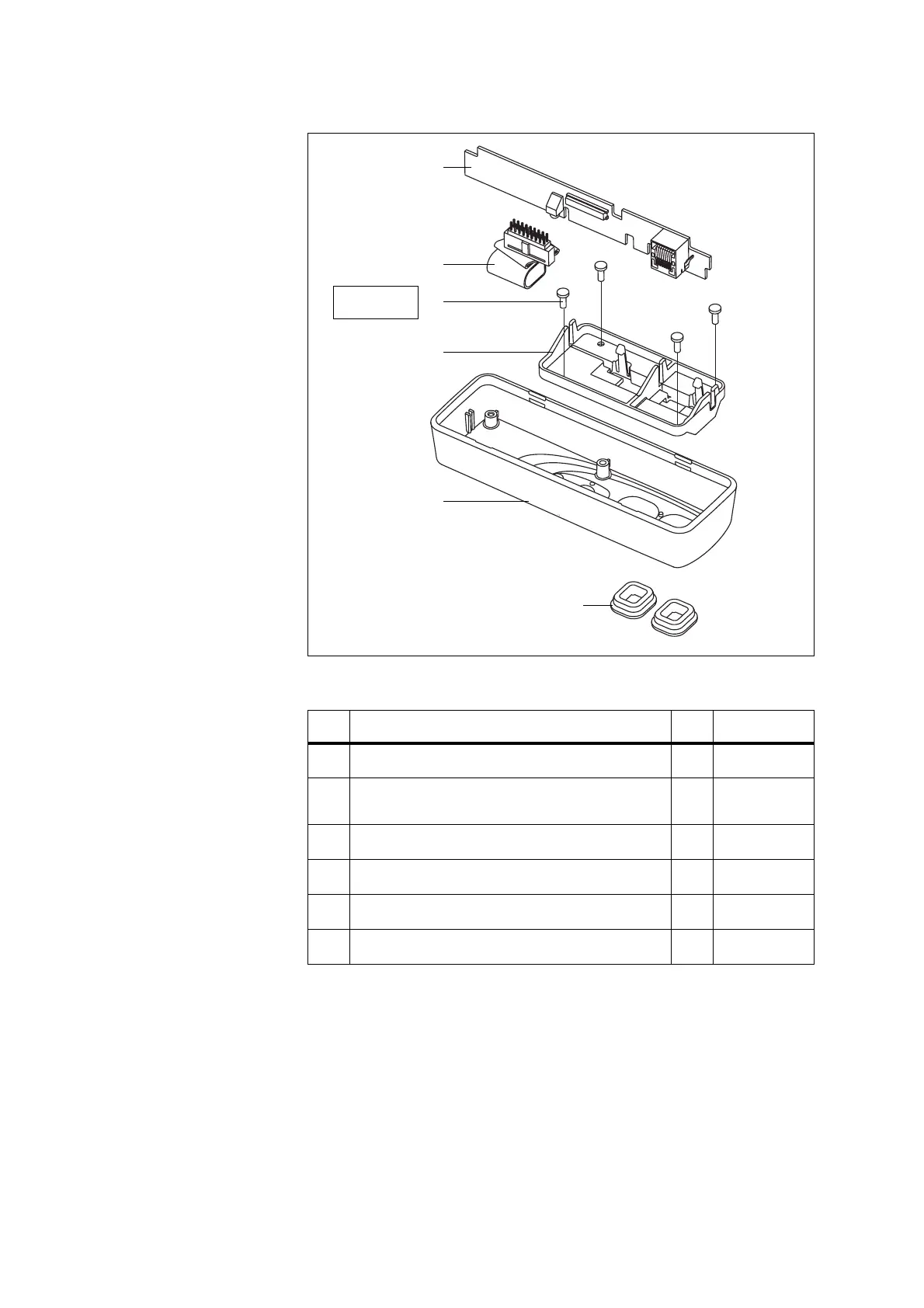

Figure 16.5 Spare parts of the RJ45 control head
Table 16.5 Spare parts of the RJ45 control head
Pos. Description Qty. IPN
B
Control-head board 1 XMAC30
C
Control-head loom (with female/female adaptor)
– female-female adaptor
1 219-02882-xx
210-00021-41
D
3 x 8 PT screw 3 346-10030-08
E
PCB bracket 1 302-10063-xx
F
Front panel 1 316-06843-xx
G
RJ45 bung 2 302-50002-xx
B
D
E
F
G
x4
C
Torx T10
5lb·in (0.6N·m)
x2
