TM8100/TM8200 Service Manual TMAA01-01 Line-Interface Board 457
© Tait Electronics Limited June 2006

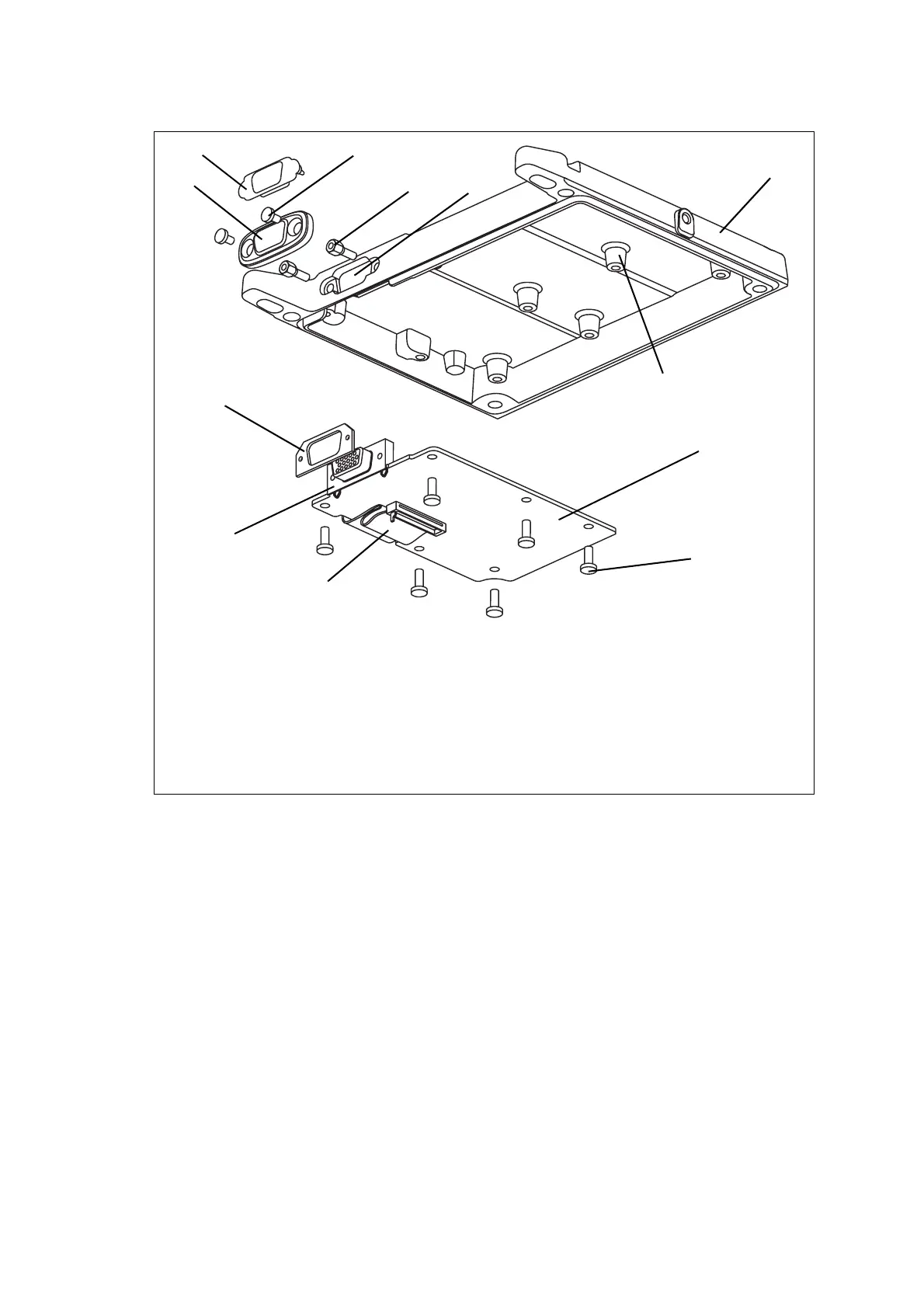

Figure 17.2 Installing the line-interface board
b
radio lid
h
screw-lock fasteners
c
external options connector bung
i
mounting posts
d
foam seal
j
M3x8 self-tapping screws
e
external options connector cavity
1)
internal options loom
f
line-interface board
1!
external options cover seal
g
external options connector
1@
4-40x3/16 screws
b
c
e
h
i
1@
1!
j
1)
d
f
g
