25.1.8 Connecting the Remote Cable

Caution When drilling holes in the vehicle, check that drilling

at the selected points will not damage existing wiring,

petrol tanks, fuel lines, brake pipes or battery cables.

1. Drill any holes required for cables and install suitable grommets or

bushings in the holes.

2. Plug one end of the remote cable into the control-head interface.

3. Run the remote cable to the torso interface and plug it into the

RJ45 connector without a bung.

Installing the

Remote-Cable

Grommets

Install both the remote cable grommets, using the following procedure.

Important The remote cable grommets must be installed whenever the

remote cable is plugged into the RJ45 sockets. When

installed, the grommets have two functions:

■ to prevent damage to the RJ45 sockets when there is

movement of the remote cable, and

■

to ensure that the radio and remote control-head assembly

is sealed against water, dust and other environmental

hazards.

1. Slide the grommet along the remote cable and push two adjacent

corners of the grommet into the RJ45 socket cavity.

2. Squeeze the grommet and push the remaining corners into position.

3. Check that the grommet is seated correctly in the cavity.

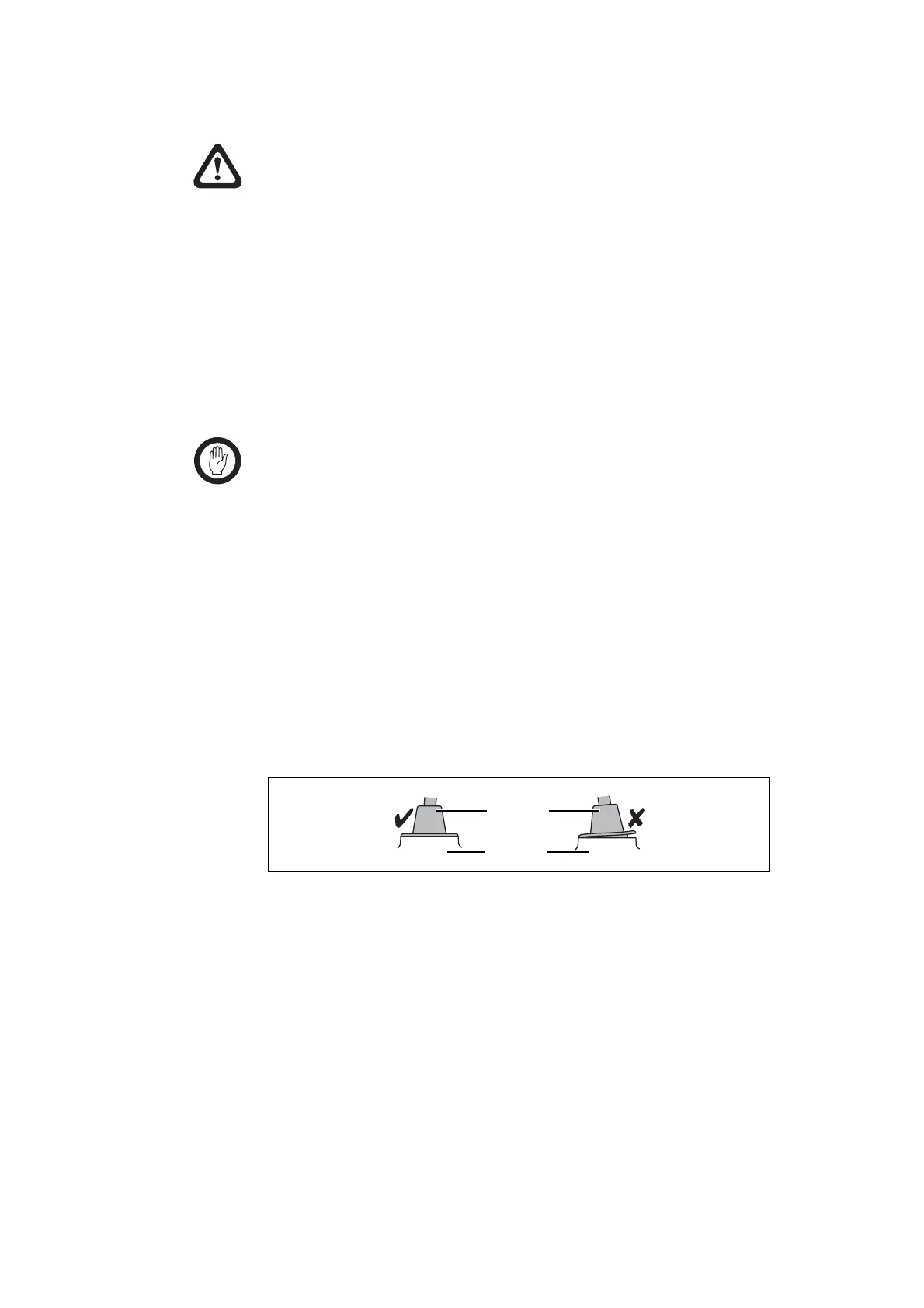

Figure 25.2 Correct remote cable grommet seating

microphone

grommet

control head
