Understanding the radio
indicators
The status LED indicators and the radio’s audible
tones—together with the radio display—all combine to
give you information about the state of your radio.
The most common way the indicators work is
described in the following sections.
The way these indicators behave may be
affected by the way your radio is programmed.
Status indicators
Color Meaning
Red
(transmit)
On: your radio is transmitting
Flashing: your transmit timer is about to
expire
Green
(receive)
On: the current channel is busy
Flashing: you have received a call or
monitor is active
Orange
(network)
Off: No service
Flashing: Limited service (no inter-site or
fixed network services are available)
On: Full service
For more information see "Checking that
your network is available" on page 89.

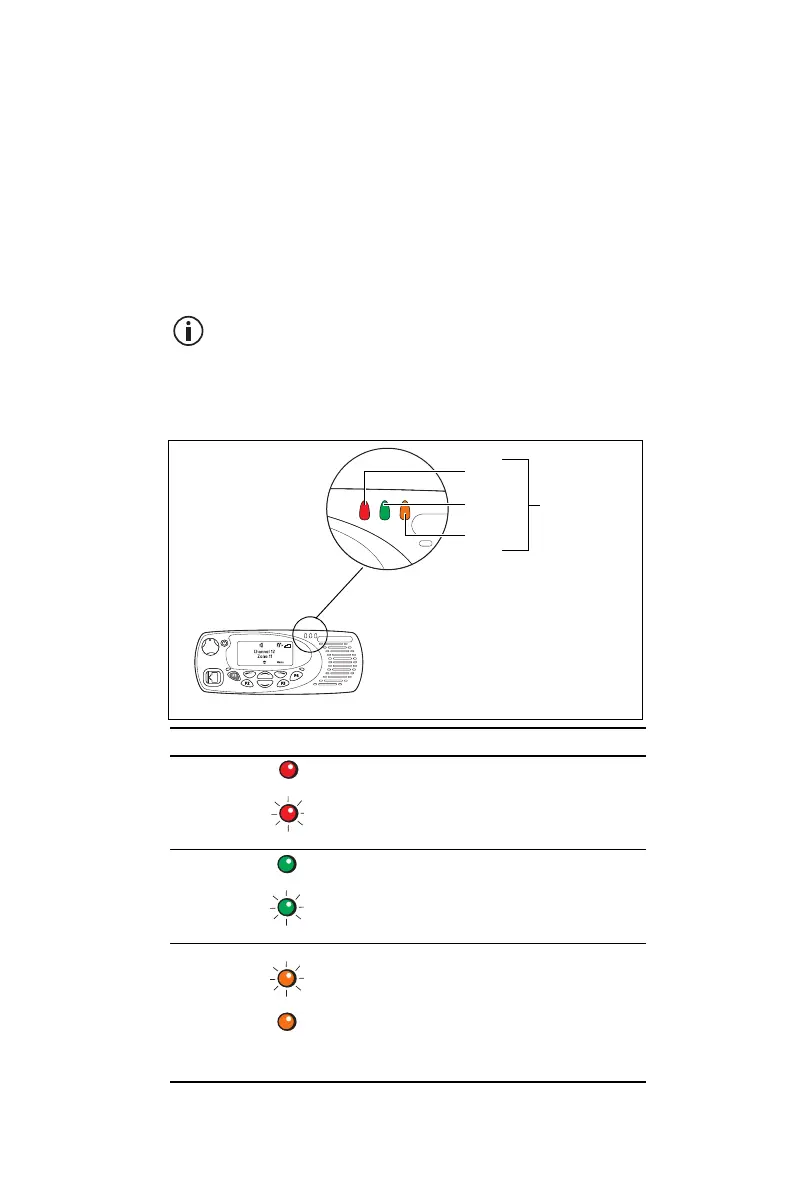

red
green
orange
status
LEDs

Tait TM9300 Specifications

General

Modulation	FM, 4FSK (DMR)
IP Rating	IP54
GPS	Optional
Bluetooth	Optional
Frequency Range	450-520 MHz
Channel Spacing	12.5 / 25 kHz
Operating Modes	Analog FM
Dimensions	160 x 60 x 40 mm (without antenna)
Weight	1.6 kg (3.53 lbs)
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Power Output	5 W, 25 W, 50 W
RF Output Power	5 W, 25 W, 50 W
