M2259-00-200-812 Tait Orca Portable (TOP) Encryption 41
Copyright TEL Encrypted Radio Programming and Service Manual

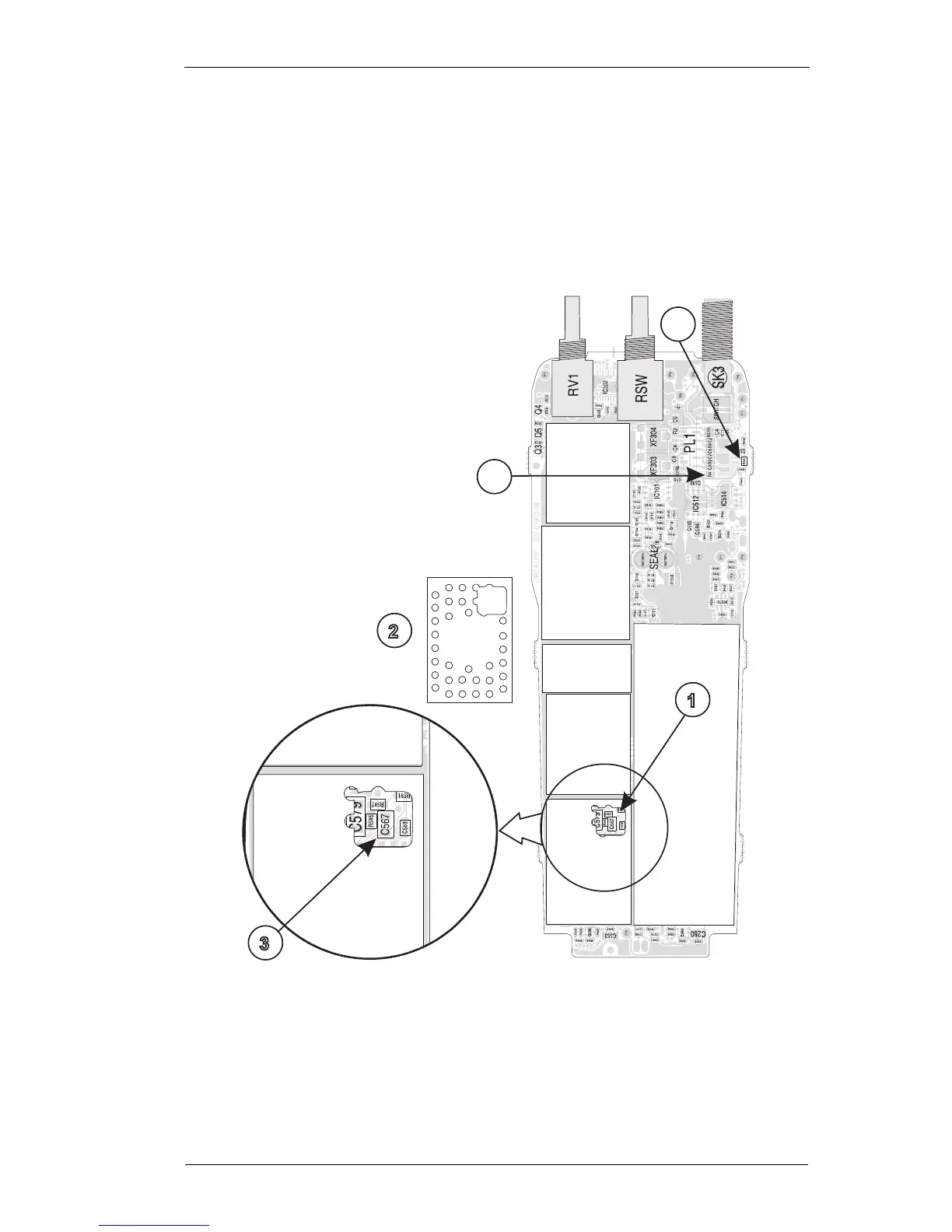

Modify Orca PCB (top side)
1. Locate can with large hole cut as shown
2. If no large hole in can, cut carefully with sidecutters where shown, and turn edges in
3. Remove capacitor C567 using hot air gun and tweezers
4. Remove component R646 using hot air gun and tweezers, and replace with 4K7 resistor
(IPN 038-14470-00)
5. Remove component R4 using hot air gun and tweezers
1
2
3
4
5
