TN-2776h-AN www.taitradio.com Page 9 of 16

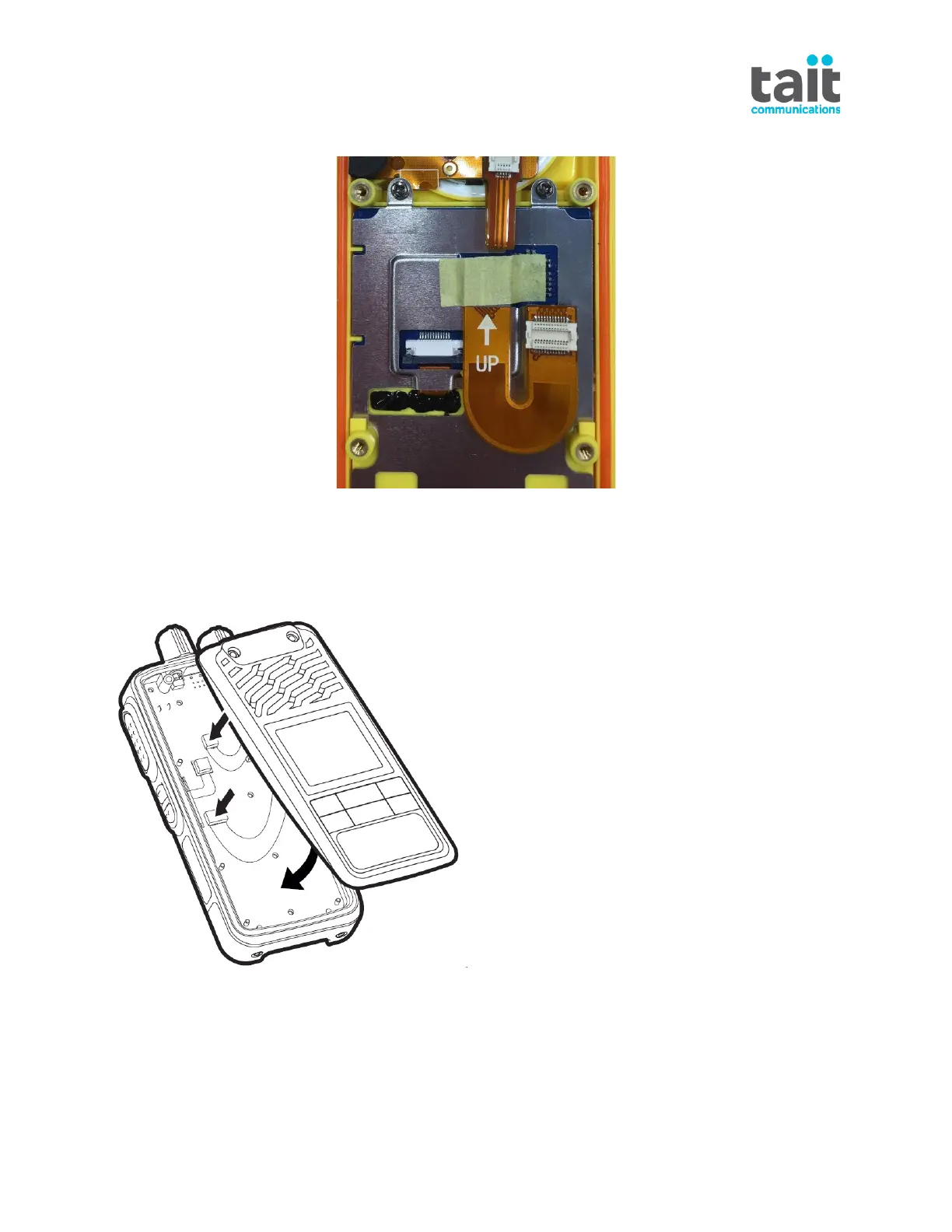

2. Align the front cover to the chassis by using the edge on the right-hand-side as a guide; use
a pair of tweezers or your fingertip to press the speaker FPC connector socket, and the
display FPC connector socket, to their corresponding plugs on the RF board.
The plug clicks when it is fully connected.
3. Attach a new O-ring to each of the two screws and use the Torx T8 driver to fasten (torque
to 0.3 N•m or 2 lbf.in) the two screws that secure the top of the front panel to the RF board.
4. Attach a new log label to the slot.
5. Flip the radio over.
